Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Active | |
| Audio/Video Channel Count | 2 | |
| Isolation Barrier Voltage | 1500VDC | |
| Minimum Transfer Efficiency | 9% @ 16mA | |
| Maximum Transfer Efficiency | - | |
| Typical Switch Times | 400ns, 1µs | |
| Typical Edge Transition Time | - | |
| Entry Signal Category | DC | |
| Exit Signal Category | Transistor with Base | |
| Peak Output Voltage | 20V | |
| Per-Channel Output Current | 8mA | |
| Typical Forward Voltage | 1.55V | |
| Max Forward DC Current | 20 mA | |
| Max Saturation Voltage Drop | - | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Ambient Temp Range | -55°C ~ 125°C | |
| Attachment Mounting Style | Surface Mount | |

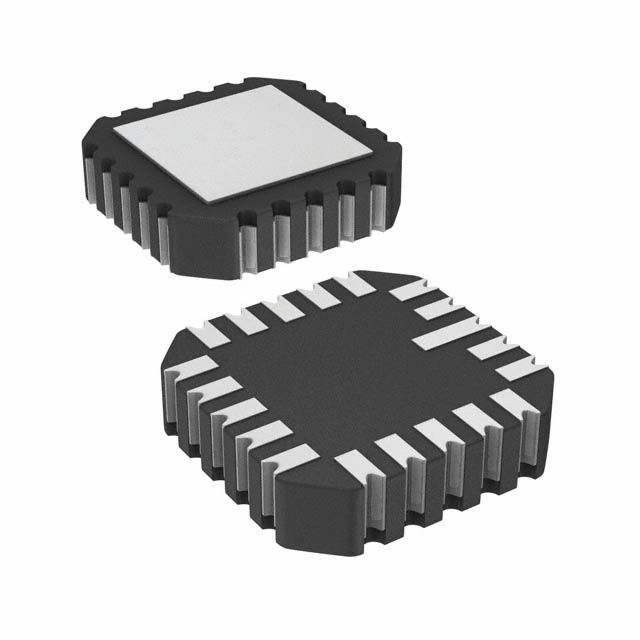

| Component Housing Style | 20-CLCC | |
| Vendor Package Type | 20-LCCC (8.89x8.89) |
Description
Indicates 2 channels present for improved performance. Offers a maximum DC forward current (If) specified at 20 mA. Shows per-channel output current rated at 8mA. Includes a minimum transfer ratio rated at 9% @ 16mA. Configured with DC input type for diverse applications. Mounting configuration Surface Mount for structural stability. Overall channels 2 for input/output or communication purposes. Temperature range -55°C ~ 125°C for environmental conditions impacting thermal efficiency. Type Transistor with Base for ensuring compatibility with output systems. Voltage 20V for optimal output electric potential. Type of housing Bulk for safeguarding or transporting components. Style of the enclosure/case 20-CLCC that offers mechanical and thermal protection. Type of package 20-LCCC (8.89x8.89) that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Supplier package type 20-LCCC (8.89x8.89) for component selection. Standard on/off cycles 400ns, 1µs for circuits. Common forward voltage Vf 1.55V for diode operation. Isolation voltage 1500VDC for electrical safety. The maximum output voltage 20V for devices.
