Stock:
Distributor: 116
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 450 | ₹ 7,759.23000 | ₹ 34,91,653.50 |
| 230 | ₹ 7,799.22000 | ₹ 17,93,820.60 |
| 100 | ₹ 7,839.22000 | ₹ 7,83,922.00 |
| 50 | ₹ 7,879.21000 | ₹ 3,93,960.50 |
| 45 | ₹ 7,919.21000 | ₹ 3,56,364.45 |
Stock:
Distributor: 108
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 39 | ₹ 7,998.43000 | ₹ 3,11,938.77 |
Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 39 | ₹ 8,123.26000 | ₹ 3,16,807.14 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tube | |
| Availability Status | Active | |
| Audio/Video Channel Count | 4 | |
| Isolation Barrier Voltage | 1500VDC | |
| Minimum Transfer Efficiency | 200% @ 5mA | |
| Maximum Transfer Efficiency | - | |
| Typical Switch Times | 2µs, 6µs | |
| Typical Edge Transition Time | - | |
| Entry Signal Category | DC | |
| Exit Signal Category | Darlington | |
| Peak Output Voltage | 20V | |
| Per-Channel Output Current | 40mA | |
| Typical Forward Voltage | 1.4V | |
| Max Forward DC Current | 10 mA | |
| Max Saturation Voltage Drop | - | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Ambient Temp Range | -55°C ~ 125°C | |
| Attachment Mounting Style | Surface Mount | |

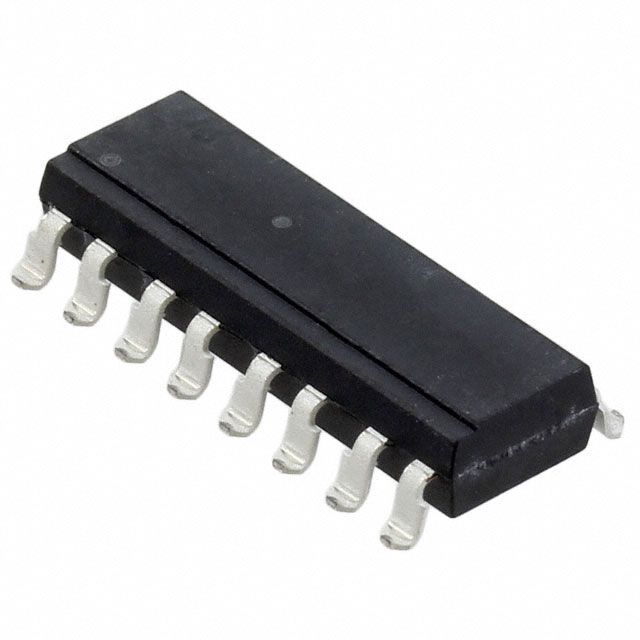

| Component Housing Style | 16-SMD, Butt Joint | |
| Vendor Package Type | 16-DIP Butt Joint |
Description
Indicates 4 channels present for improved performance. Offers a maximum DC forward current (If) specified at 10 mA. Shows per-channel output current rated at 40mA. Includes a minimum transfer ratio rated at 200% @ 5mA. Configured with DC input type for diverse applications. Mounting configuration Surface Mount for structural stability. Overall channels 4 for input/output or communication purposes. Temperature range -55°C ~ 125°C for environmental conditions impacting thermal efficiency. Type Darlington for ensuring compatibility with output systems. Voltage 20V for optimal output electric potential. Type of housing Tube for safeguarding or transporting components. Style of the enclosure/case 16-SMD, Butt Joint that offers mechanical and thermal protection. Type of package 16-DIP Butt Joint that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Supplier package type 16-DIP Butt Joint for component selection. Standard on/off cycles 2µs, 6µs for circuits. Common forward voltage Vf 1.4V for diode operation. Isolation voltage 1500VDC for electrical safety. The maximum output voltage 20V for devices.
