Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Audio/Video Channel Count | 1 | |
| Isolation Barrier Voltage | 3750Vrms | |
| Minimum Transfer Efficiency | 200% @ 10mA | |
| Maximum Transfer Efficiency | 1000% @ 10mA | |
| Typical Switch Times | 5µs, 150µs | |
| Typical Edge Transition Time | - | |
| Entry Signal Category | DC | |
| Exit Signal Category | Darlington with Base | |
| Peak Output Voltage | 20V | |
| Per-Channel Output Current | 60mA | |
| Typical Forward Voltage | 1.4V | |
| Max Forward DC Current | 20 mA | |
| Max Saturation Voltage Drop | - | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Ambient Temp Range | -40°C ~ 85°C | |
| Attachment Mounting Style | Surface Mount | |

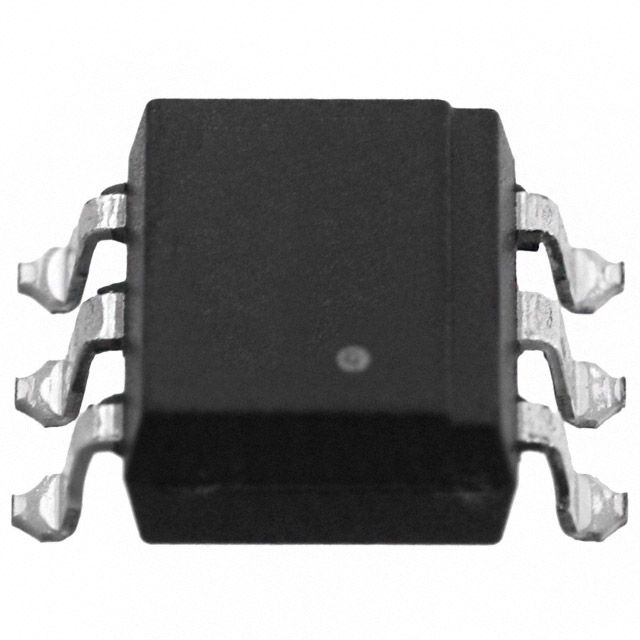

| Component Housing Style | 6-SMD, Gull Wing | |
| Vendor Package Type | 6-SMD |
Description
Indicates 1 channels present for improved performance. Offers a maximum DC forward current (If) specified at 20 mA. Shows per-channel output current rated at 60mA. Allows for a maximum transfer ratio assessed at 1000% @ 10mA. Includes a minimum transfer ratio rated at 200% @ 10mA. Configured with DC input type for diverse applications. Mounting configuration Surface Mount for structural stability. Overall channels 1 for input/output or communication purposes. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Type Darlington with Base for ensuring compatibility with output systems. Voltage 20V for optimal output electric potential. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case 6-SMD, Gull Wing that offers mechanical and thermal protection. Type of package 6-SMD that preserves the integrity of the device. Supplier package type 6-SMD for component selection. Standard on/off cycles 5µs, 150µs for circuits. Common forward voltage Vf 1.4V for diode operation. Isolation voltage 3750Vrms for electrical safety. The maximum output voltage 20V for devices.
