Stock:
Distributor: 108
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 9000 | ₹ 48.06000 | ₹ 4,32,540.00 |
Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 9000 | ₹ 129.11000 | ₹ 11,61,990.00 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Availability Status | Active | |
| Audio/Video Channel Count | 1 | |
| Dual Side Input Counts | 1/0 | |
| Isolation Barrier Voltage | 3750Vrms | |
| Minimum Surge Tolerance | 20kV/µs | |
| Entry Signal Category | DC | |
| Exit Signal Category | Open Collector, Schottky Clamped | |
| Per-Channel Output Current | 50 mA | |
| Transfer Speed Mbps | 10Mbps | |
| Max Low-to-High/High-to-Low Delay | 100ns, 100ns | |
| Typical Edge Transition Time | 40ns, 10ns | |
| Typical Forward Voltage | 1.45V | |
| Max Forward DC Current | 50mA | |
| Power Supply Voltage | 7V | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Ambient Temp Range | -40°C ~ 85°C | |
| Attachment Mounting Style | Surface Mount | |

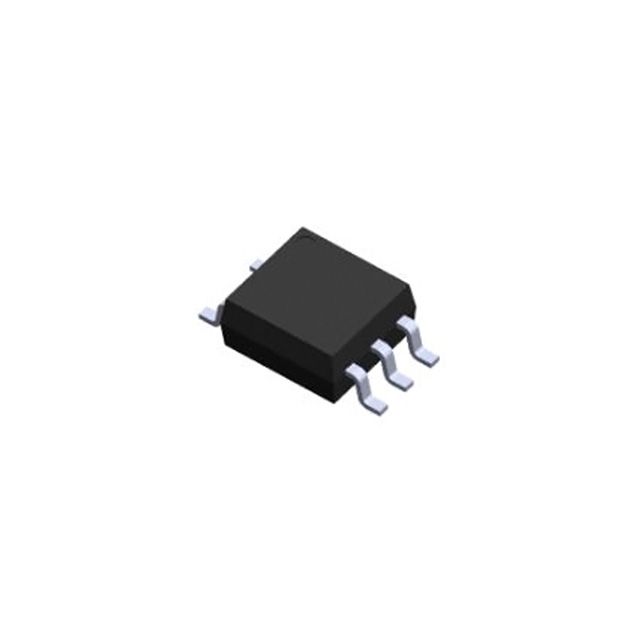

| Component Housing Style | 6-SOIC (0.173", 4.40mm Width), 5 Leads | |
| Vendor Package Type | 5-SOP |
Description
Indicates 1 channels present for improved performance. Ensures a minimum common-mode transient immunity of 20kV/µs to reduce interference. Offers a maximum DC forward current (If) specified at 50mA. Shows per-channel output current rated at 50 mA. Facilitates a maximum output current level set as 100ns, 100ns. Delivers a data transfer rate measured at 10Mbps for rapid operations. Demonstrates a sampling rate capability indicated as 10Mbps. Configured with DC input type for diverse applications. Inputs on side 1/side 2 permit 1/0 configuration. Mounting configuration Surface Mount for structural stability. Overall channels 1 for input/output or communication purposes. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Type Open Collector, Schottky Clamped for ensuring compatibility with output systems. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case 6-SOIC (0.173", 4.40mm Width), 5 Leads that offers mechanical and thermal protection. Type of package 5-SOP that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Highest tpLH/tpHL latency 100ns, 100ns for rapid applications. Typical rise and fall duration 40ns, 10ns for signal transitions. Supplier package type 5-SOP for component selection. Voltage requirement 7V for electrical specifications. Common forward voltage Vf 1.45V for diode operation. Isolation voltage 3750Vrms for electrical safety. Voltage supply 7V for device operation.
