Description

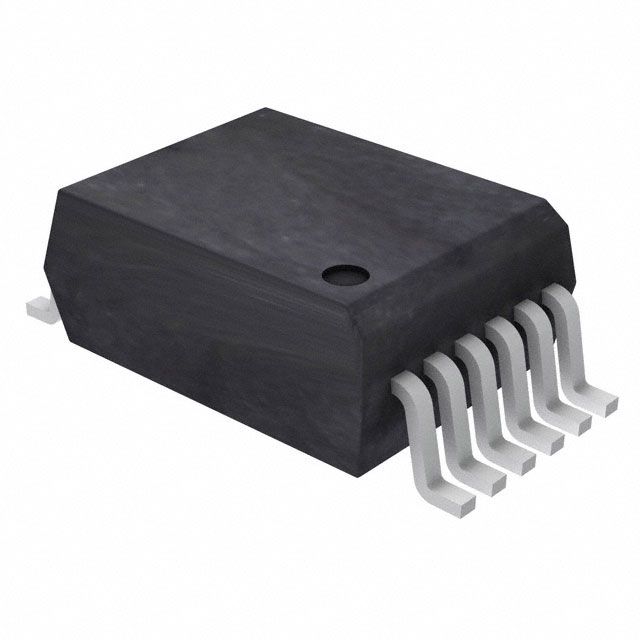

Indicates 2 channels present for improved performance. Ensures a minimum common-mode transient immunity of 15kV/µs to reduce interference. Offers a maximum DC forward current (If) specified at 20mA. Shows per-channel output current rated at 10 mA. Facilitates a maximum output current level set as 100ns, 100ns. Delivers a data transfer rate measured at 15MBd for rapid operations. Demonstrates a sampling rate capability indicated as 15MBd. Evaluated as Automotive grade for quality control. Configured with DC input type for diverse applications. Inputs on side 1/side 2 permit 1/1 configuration. Mounting configuration Surface Mount for structural stability. Overall channels 2 for input/output or communication purposes. Temperature range -40°C ~ 125°C for environmental conditions impacting thermal efficiency. Type Push-Pull, Totem Pole for ensuring compatibility with output systems. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 12-BSOP (0.295", 7.50mm Width) that offers mechanical and thermal protection. Type of package 12-SO that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Highest tpLH/tpHL latency 100ns, 100ns for rapid applications. Certification AEC-Q100 for compliance with testing or regulatory standards. Typical rise and fall duration 10ns, 10ns for signal transitions. Classification series for the product or component R²Coupler™. Supplier package type 12-SO for component selection. Voltage requirement 3V ~ 5.5V for electrical specifications. Common forward voltage Vf 1.5V for diode operation. Isolation voltage 5000Vrms for electrical safety. Voltage supply 3V ~ 5.5V for device operation.
