Description

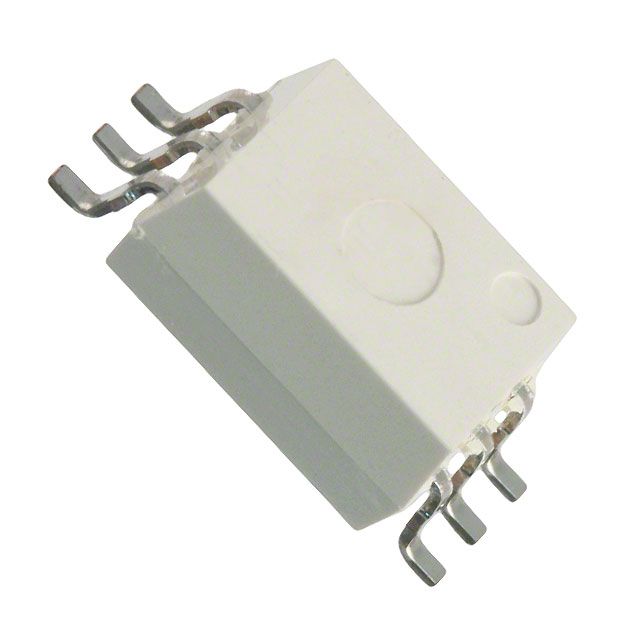

Complies with the criteria of entities acknowledged as cUL, UL. Indicates 1 channels present for improved performance. Ensures a minimum common-mode transient immunity of 10kV/µs to reduce interference. Offers a maximum DC forward current (If) specified at 20 mA. Facilitates a maximum output current level set as 700ns, 700ns. Offers information on high and low output current settings at 400mA, 400mA. Features peak output current measured at 600mA. Mounting configuration Surface Mount for structural stability. Overall channels 1 for input/output or communication purposes. Temperature range -40°C ~ 100°C for environmental conditions impacting thermal efficiency. Type of housing Tube for safeguarding or transporting components. Style of the enclosure/case 6-SOIC (0.268", 6.80mm Width) that offers mechanical and thermal protection. Type of package 6-SDIP Gull Wing that preserves the integrity of the device. Product status Obsolete concerning availability and lifecycle. Highest tpLH/tpHL latency 700ns, 700ns for rapid applications. Typical rise and fall duration 50ns, 50ns for signal transitions. Supplier package type 6-SDIP Gull Wing for component selection. Voltage requirement 10V ~ 30V for electrical specifications. The primary technology platform Optical Coupling linked to the product category. Common forward voltage Vf 1.55V for diode operation. Isolation voltage 5000Vrms for electrical safety. The supply voltage output 10V ~ 30V used to power the device.
