Description

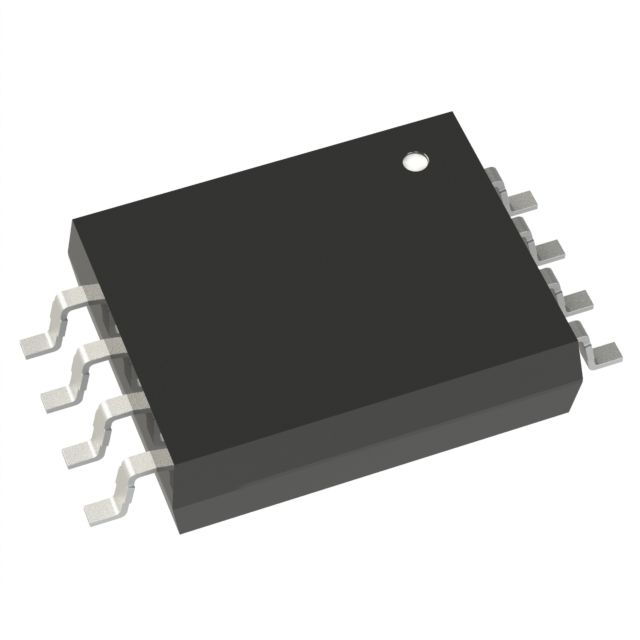

Complies with the criteria of entities acknowledged as CQC, CSA, cUL, UL, VDE. Indicates 1 channels present for improved performance. Ensures a minimum common-mode transient immunity of 70kV/µs to reduce interference. Offers a maximum DC forward current (If) specified at 25 mA. Facilitates a maximum output current level set as 150ns, 150ns. Offers information on high and low output current settings at 2A, 2A. Features peak output current measured at 4.8A, 6.8A. Mounting configuration Surface Mount for structural stability. Overall channels 1 for input/output or communication purposes. Temperature range -40°C ~ 125°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 8-SOIC (0.295", 7.50mm Width) that offers mechanical and thermal protection. Type of package 8-SO that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Highest tpLH/tpHL latency 150ns, 150ns for rapid applications. Maximum pulse width deviation 40ns to maintain signal integrity. Typical rise and fall duration 6.8ns, 3.9ns for signal transitions. Supplier package type 8-SO for component selection. Voltage requirement 13V ~ 23V for electrical specifications. The primary technology platform Optical Coupling linked to the product category. Common forward voltage Vf 1.7V (Max) for diode operation. Isolation voltage 5000Vrms for electrical safety. The supply voltage output 13V ~ 23V used to power the device.
