Description

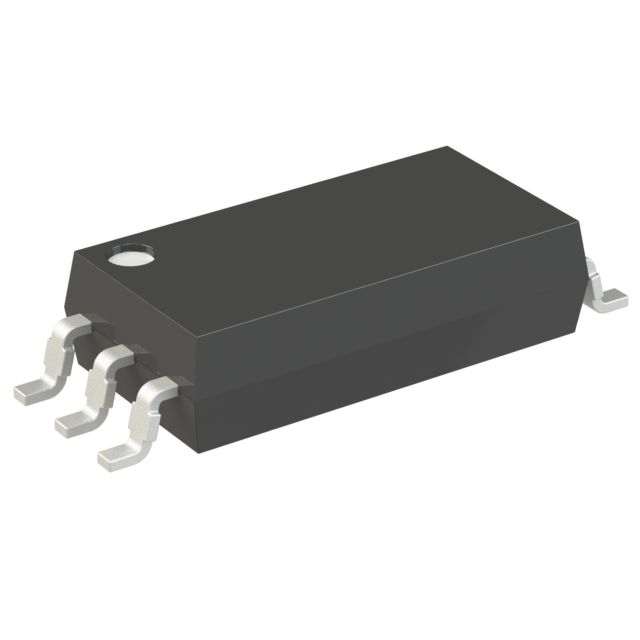

Complies with the criteria of entities acknowledged as CQC, CSA, cUL, UL, VDE. Indicates 1 channels present for improved performance. Ensures a minimum common-mode transient immunity of 35kV/µs to reduce interference. Offers a maximum DC forward current (If) specified at 8 mA. Facilitates a maximum output current level set as 150ns, 150ns. Offers information on high and low output current settings at 4A, 4A. Features peak output current measured at 4A. Mounting configuration Surface Mount for structural stability. Overall channels 1 for input/output or communication purposes. Temperature range -40°C ~ 125°C for environmental conditions impacting thermal efficiency. Type of housing Tube for safeguarding or transporting components. Style of the enclosure/case 6-SOIC (0.295", 7.50mm Width) that offers mechanical and thermal protection. Type of package 6-SO that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Highest tpLH/tpHL latency 150ns, 150ns for rapid applications. Maximum pulse width deviation 50ns to maintain signal integrity. Typical rise and fall duration 56ns, 25ns for signal transitions. Supplier package type 6-SO for component selection. Voltage requirement 10V ~ 30V for electrical specifications. The primary technology platform Optical Coupling linked to the product category. Common forward voltage Vf 1.65V for diode operation. Isolation voltage 5000Vrms for electrical safety. The supply voltage output 10V ~ 30V used to power the device.
