Description

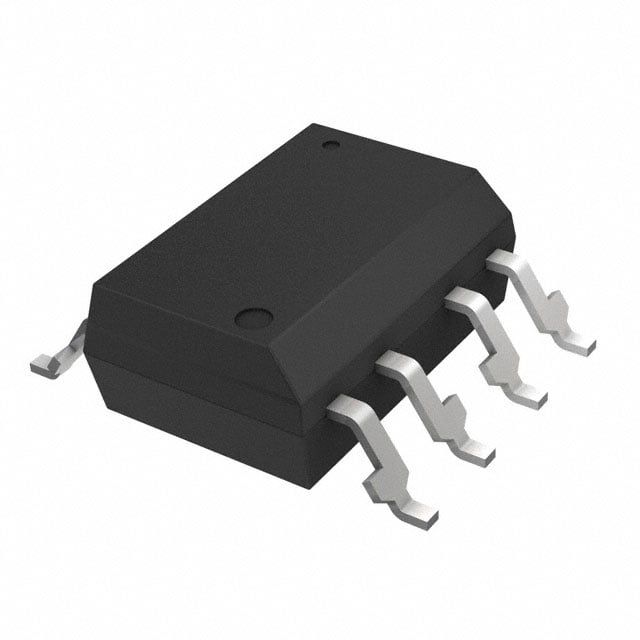

Complies with the criteria of entities acknowledged as CSA, cUL, UL, VDE. Indicates 1 channels present for improved performance. Ensures a minimum common-mode transient immunity of 20kV/µs to reduce interference. Offers a maximum DC forward current (If) specified at 20 mA. Facilitates a maximum output current level set as 200ns, 200ns. Offers information on high and low output current settings at 2A, 2A. Features peak output current measured at 2.5A. Mounting configuration Surface Mount for structural stability. Overall channels 1 for input/output or communication purposes. Temperature range -40°C ~ 125°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 8-SMD, Gull Wing that offers mechanical and thermal protection. Type of package 8-SMD that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Highest tpLH/tpHL latency 200ns, 200ns for rapid applications. Maximum pulse width deviation 50ns to maintain signal integrity. Typical rise and fall duration 15ns, 8ns for signal transitions. Supplier package type 8-SMD for component selection. Voltage requirement 15V ~ 30V for electrical specifications. The primary technology platform Optical Coupling linked to the product category. Common forward voltage Vf 1.55V for diode operation. Isolation voltage 3750Vrms for electrical safety. The supply voltage output 15V ~ 30V used to power the device.
