Stock:
Distributor: 142
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 598.97000 | ₹ 598.97 |
| 10 | ₹ 542.01000 | ₹ 5,420.10 |
| 25 | ₹ 516.20000 | ₹ 12,905.00 |
| 100 | ₹ 448.56000 | ₹ 44,856.00 |
| 250 | ₹ 428.09000 | ₹ 1,07,022.50 |
| 500 | ₹ 390.71000 | ₹ 1,95,355.00 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Availability Status | Obsolete | |
| Core Technology Platform | Magnetic Coupling | |
| Audio/Video Channel Count | 1 | |
| Isolation Barrier Voltage | 2500Vrms | |
| Minimum Surge Tolerance | - | |
| Max Low-to-High/High-to-Low Delay | 130ns, 130ns | |
| Max Pulse Skew | 10ns | |
| Typical Edge Transition Time | 25ns, 25ns (Max) | |
| High/Low Logic Current | 2.5A, 2.5A | |
| Peak Delivery Current | - | |
| Typical Forward Voltage | - | |
| Max Forward DC Current | - | |
| Output Supply Voltage | 4.5V ~ 36V | |
| Quality Grade Level | Automotive | |
| Certification Qualification | AEC-Q100 | |
| Ambient Temp Range | -40°C ~ 125°C | |
| Attachment Mounting Style | Surface Mount | |

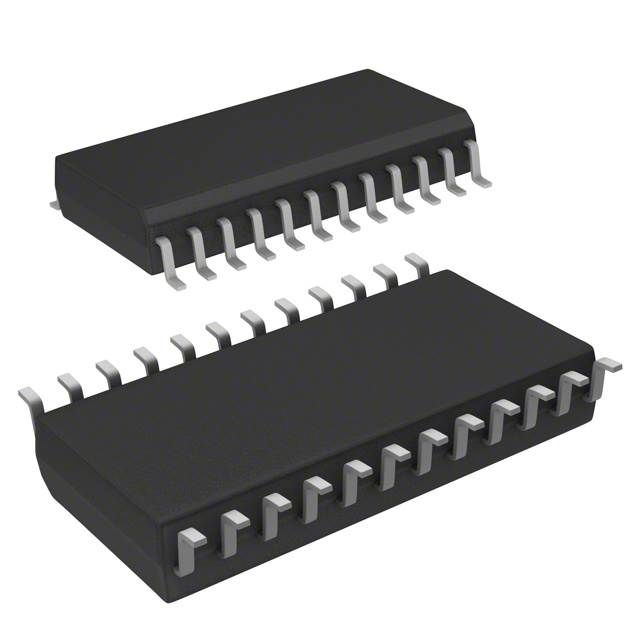

| Component Housing Style | 24-SOIC (0.295", 7.50mm Width) | |
| Vendor Package Type | 24-SO | |
| Certification Body | - |
Description
Indicates 1 channels present for improved performance. Facilitates a maximum output current level set as 130ns, 130ns. Offers information on high and low output current settings at 2.5A, 2.5A. Evaluated as Automotive grade for quality control. Mounting configuration Surface Mount for structural stability. Overall channels 1 for input/output or communication purposes. Temperature range -40°C ~ 125°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case 24-SOIC (0.295", 7.50mm Width) that offers mechanical and thermal protection. Type of package 24-SO that preserves the integrity of the device. Product status Obsolete concerning availability and lifecycle. Highest tpLH/tpHL latency 130ns, 130ns for rapid applications. Maximum pulse width deviation 10ns to maintain signal integrity. Certification AEC-Q100 for compliance with testing or regulatory standards. Typical rise and fall duration 25ns, 25ns (Max) for signal transitions. Supplier package type 24-SO for component selection. Voltage requirement 4.5V ~ 36V for electrical specifications. The primary technology platform Magnetic Coupling linked to the product category. Isolation voltage 2500Vrms for electrical safety. The supply voltage output 4.5V ~ 36V used to power the device.
