Description

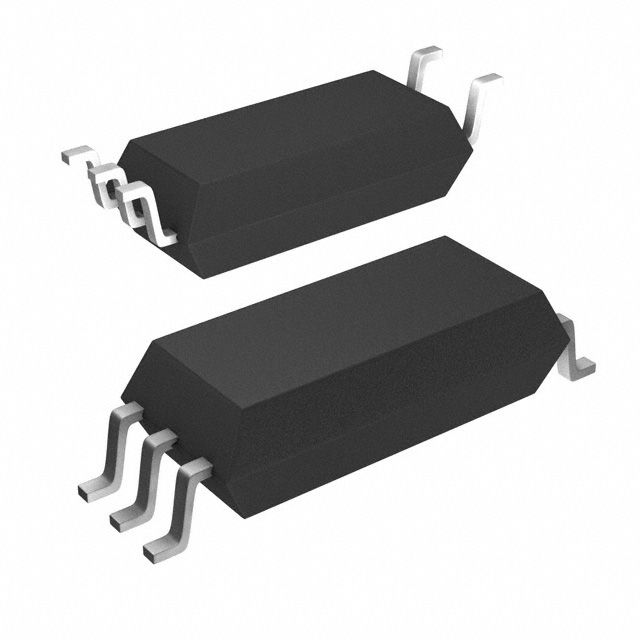

Complies with the criteria of entities acknowledged as IEC/EN/DIN, UL. Indicates 1 channels present for improved performance. Ensures a minimum common-mode transient immunity of 35kV/µs to reduce interference. Offers a maximum DC forward current (If) specified at 25 mA. Facilitates a maximum output current level set as 400ns, 400ns. Offers information on high and low output current settings at 2A, 2A. Features peak output current measured at 3A. Mounting configuration Surface Mount for structural stability. Overall channels 1 for input/output or communication purposes. Temperature range -40°C ~ 100°C for environmental conditions impacting thermal efficiency. Type of housing Tube for safeguarding or transporting components. Style of the enclosure/case 6-SOIC (0.362", 9.20mm Width), 5 Leads that offers mechanical and thermal protection. Type of package 5-SOP that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Highest tpLH/tpHL latency 400ns, 400ns for rapid applications. Maximum pulse width deviation 100ns to maintain signal integrity. Typical rise and fall duration 60ns, 60ns for signal transitions. Supplier package type 5-SOP for component selection. Voltage requirement 16V ~ 30V for electrical specifications. The primary technology platform Optical Coupling linked to the product category. Common forward voltage Vf 1.5V for diode operation. Isolation voltage 5000Vrms for electrical safety. The supply voltage output 16V ~ 30V used to power the device.
