Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Obsolete | |
| Core Technology Platform | Optical Coupling | |
| Audio/Video Channel Count | 1 | |
| Isolation Barrier Voltage | 5000Vrms | |
| Minimum Surge Tolerance | 10kV/µs | |
| Max Low-to-High/High-to-Low Delay | 500ns, 500ns | |
| Max Pulse Skew | - | |
| Typical Edge Transition Time | 75ns, 55ns | |
| High/Low Logic Current | 500mA, 500mA | |
| Peak Delivery Current | 1.5A | |
| Typical Forward Voltage | 1.5V | |
| Max Forward DC Current | 25 mA | |
| Output Supply Voltage | 10V ~ 20V | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Ambient Temp Range | -20°C ~ 85°C | |
| Attachment Mounting Style | Through Hole | |

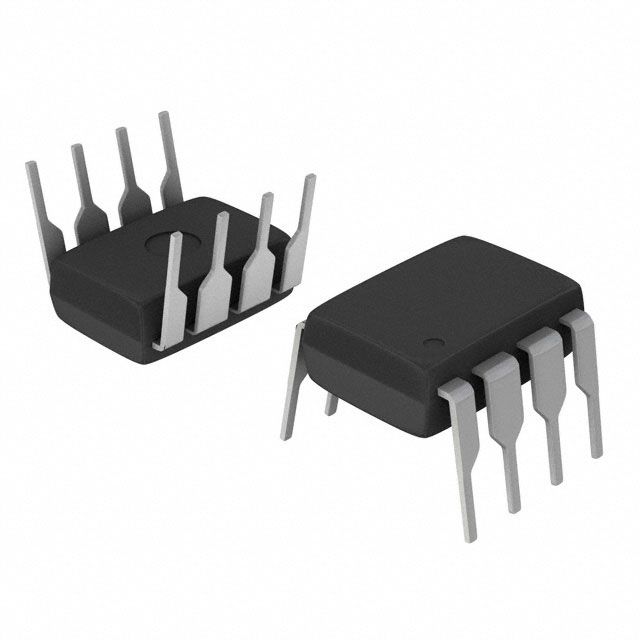

| Component Housing Style | 8-DIP (0.400", 10.16mm) | |
| Vendor Package Type | 8-MDIP | |
| Certification Body | cUL, UL |
Description
Complies with the criteria of entities acknowledged as cUL, UL. Indicates 1 channels present for improved performance. Ensures a minimum common-mode transient immunity of 10kV/µs to reduce interference. Offers a maximum DC forward current (If) specified at 25 mA. Facilitates a maximum output current level set as 500ns, 500ns. Offers information on high and low output current settings at 500mA, 500mA. Features peak output current measured at 1.5A. Mounting configuration Through Hole for structural stability. Overall channels 1 for input/output or communication purposes. Temperature range -20°C ~ 85°C for environmental conditions impacting thermal efficiency. Type of housing Bulk for safeguarding or transporting components. Style of the enclosure/case 8-DIP (0.400", 10.16mm) that offers mechanical and thermal protection. Type of package 8-MDIP that preserves the integrity of the device. Product status Obsolete concerning availability and lifecycle. Highest tpLH/tpHL latency 500ns, 500ns for rapid applications. Typical rise and fall duration 75ns, 55ns for signal transitions. Supplier package type 8-MDIP for component selection. Voltage requirement 10V ~ 20V for electrical specifications. The primary technology platform Optical Coupling linked to the product category. Common forward voltage Vf 1.5V for diode operation. Isolation voltage 5000Vrms for electrical safety. The supply voltage output 10V ~ 20V used to power the device.
