Description

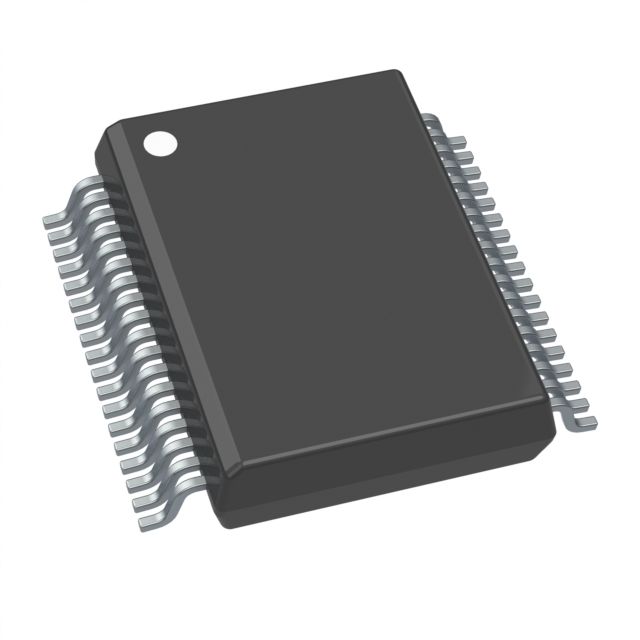

Complies with the criteria of entities acknowledged as IEC/EN/DIN, UL. Indicates 1 channels present for improved performance. Ensures a minimum common-mode transient immunity of 150kV/µs to reduce interference. Facilitates a maximum output current level set as 120ns, 120ns. Offers information on high and low output current settings at 20A, 20A. Features peak output current measured at 20A. Evaluated as Automotive grade for quality control. Mounting configuration Surface Mount for structural stability. Overall channels 1 for input/output or communication purposes. Temperature range -40°C ~ 150°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 36-BFSOP (0.295", 7.50mm Width) that offers mechanical and thermal protection. Type of package PG-DSO-36-85 that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Highest tpLH/tpHL latency 120ns, 120ns for rapid applications. Maximum pulse width deviation 20ns to maintain signal integrity. Certification AEC-Q100 for compliance with testing or regulatory standards. Typical rise and fall duration 35ns, 45ns (Max) for signal transitions. Classification series for the product or component EiceDRIVER™. Supplier package type PG-DSO-36-85 for component selection. Voltage requirement 4.55V ~ 5.5V, 14V ~ 21.5V for electrical specifications. The primary technology platform Capacitive Coupling linked to the product category. Isolation voltage 8000Vpk for electrical safety. The supply voltage output 4.55V ~ 5.5V, 14V ~ 21.5V used to power the device.
