Description

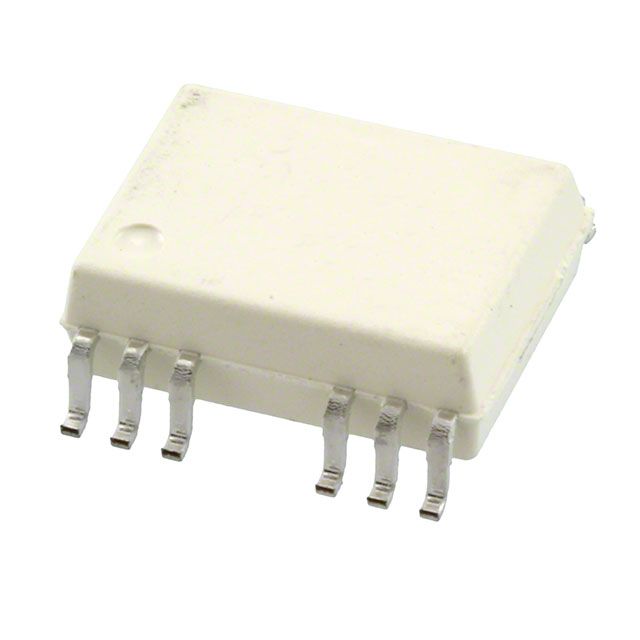

Complies with the criteria of entities acknowledged as CSA, IEC/EN/DIN, UR. Indicates 2 channels present for improved performance. Ensures a minimum common-mode transient immunity of 25kV/µs to reduce interference. Offers a maximum DC forward current (If) specified at 25 mA. Facilitates a maximum output current level set as 700ns, 700ns. Offers information on high and low output current settings at 500mA, -. Features peak output current measured at 600mA. Mounting configuration Surface Mount for structural stability. Overall channels 2 for input/output or communication purposes. Temperature range -40°C ~ 100°C for environmental conditions impacting thermal efficiency. Type of housing Tube for safeguarding or transporting components. Style of the enclosure/case 16-SOIC (0.295", 7.50mm Width) that offers mechanical and thermal protection. Type of package 16-SO that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Highest tpLH/tpHL latency 700ns, 700ns for rapid applications. Typical rise and fall duration 50ns, 50ns for signal transitions. Supplier package type 16-SO for component selection. Voltage requirement 10V ~ 30V for electrical specifications. The primary technology platform Optical Coupling linked to the product category. Common forward voltage Vf 1.5V for diode operation. Isolation voltage 5000Vrms for electrical safety. The supply voltage output 10V ~ 30V used to power the device.
