Description

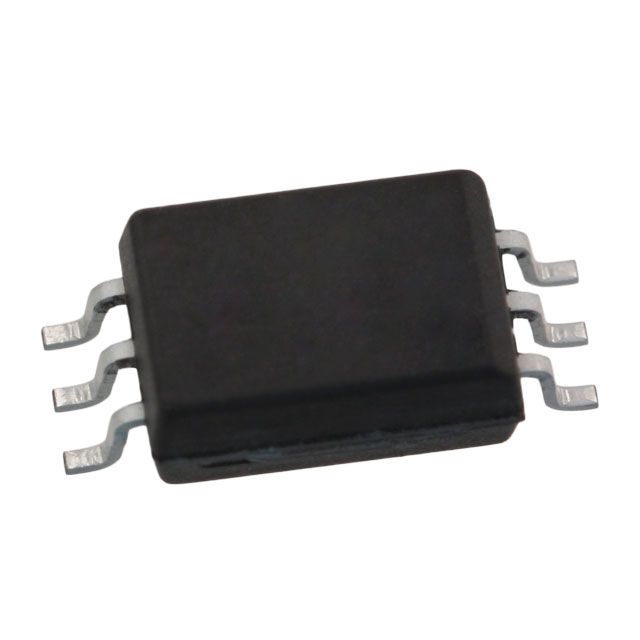

Complies with the criteria of entities acknowledged as CSA, UR. Indicates 1 channels present for improved performance. Ensures a minimum common-mode transient immunity of 50kV/µs to reduce interference. Offers a maximum DC forward current (If) specified at 25 mA. Facilitates a maximum output current level set as 120ns, 120ns. Offers information on high and low output current settings at 800mA, 800mA. Features peak output current measured at 1A. Mounting configuration Surface Mount for structural stability. Overall channels 1 for input/output or communication purposes. Temperature range -40°C ~ 105°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 6-SOIC (0.268", 6.80mm Width) that offers mechanical and thermal protection. Type of package 6-SO Stretched that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Highest tpLH/tpHL latency 120ns, 120ns for rapid applications. Maximum pulse width deviation 50ns to maintain signal integrity. Typical rise and fall duration 8ns, 8ns for signal transitions. Supplier package type 6-SO Stretched for component selection. Voltage requirement 10V ~ 20V for electrical specifications. The primary technology platform Optical Coupling linked to the product category. Common forward voltage Vf 1.55V for diode operation. Isolation voltage 3750Vrms for electrical safety. The supply voltage output 10V ~ 20V used to power the device.
