Stock:
Distributor: 116
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 240 | ₹ 14,915.79000 | ₹ 35,79,789.60 |
| 120 | ₹ 14,992.68000 | ₹ 17,99,121.60 |
| 50 | ₹ 15,069.57000 | ₹ 7,53,478.50 |
| 30 | ₹ 15,146.45000 | ₹ 4,54,393.50 |
| 24 | ₹ 15,223.33000 | ₹ 3,65,359.92 |
Stock:
Distributor: 108
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 20 | ₹ 15,376.53000 | ₹ 3,07,530.60 |
Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 20 | ₹ 15,501.14000 | ₹ 3,10,022.80 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Active | |
| Core Technology Platform | Optical Coupling | |
| Audio/Video Channel Count | 1 | |
| Isolation Barrier Voltage | 1500VDC | |
| Minimum Surge Tolerance | 9kV/µs | |
| Max Low-to-High/High-to-Low Delay | 500ns, 500ns | |
| Max Pulse Skew | 300ns | |
| Typical Edge Transition Time | 100ns, 100ns | |
| High/Low Logic Current | 2A, 2A | |
| Peak Delivery Current | 2.5A | |
| Typical Forward Voltage | - | |
| Max Forward DC Current | - | |
| Output Supply Voltage | 15V ~ 30V | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Ambient Temp Range | -55°C ~ 125°C | |
| Attachment Mounting Style | Surface Mount | |

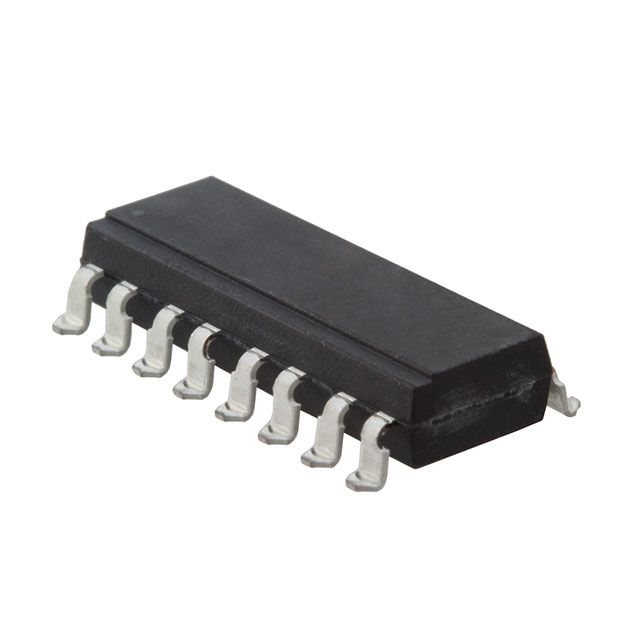

| Component Housing Style | 16-SMD, Gull Wing | |
| Vendor Package Type | 16-SMD Gull Wing | |
| Certification Body | - |
Description
Indicates 1 channels present for improved performance. Ensures a minimum common-mode transient immunity of 9kV/µs to reduce interference. Facilitates a maximum output current level set as 500ns, 500ns. Offers information on high and low output current settings at 2A, 2A. Features peak output current measured at 2.5A. Mounting configuration Surface Mount for structural stability. Overall channels 1 for input/output or communication purposes. Temperature range -55°C ~ 125°C for environmental conditions impacting thermal efficiency. Type of housing Bulk for safeguarding or transporting components. Style of the enclosure/case 16-SMD, Gull Wing that offers mechanical and thermal protection. Type of package 16-SMD Gull Wing that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Highest tpLH/tpHL latency 500ns, 500ns for rapid applications. Maximum pulse width deviation 300ns to maintain signal integrity. Typical rise and fall duration 100ns, 100ns for signal transitions. Supplier package type 16-SMD Gull Wing for component selection. Voltage requirement 15V ~ 30V for electrical specifications. The primary technology platform Optical Coupling linked to the product category. Isolation voltage 1500VDC for electrical safety. The supply voltage output 15V ~ 30V used to power the device.
