Description

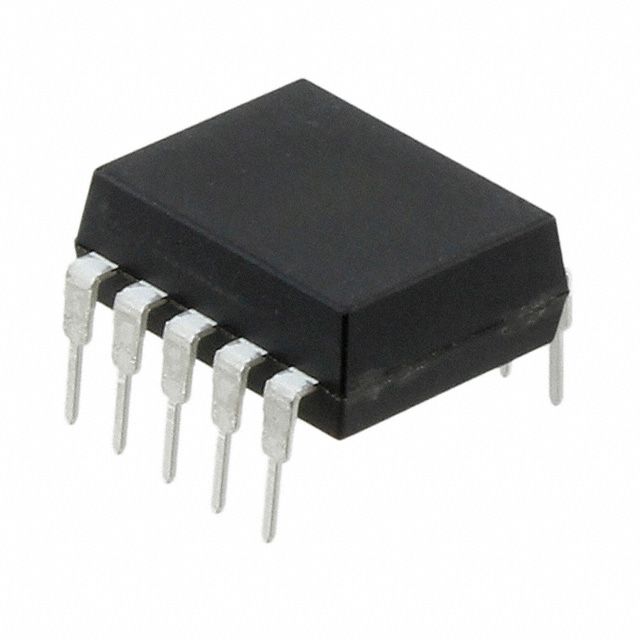

Complies with the criteria of entities acknowledged as CSA, IEC/EN/DIN, UR. Indicates 1 channels present for improved performance. Ensures a minimum common-mode transient immunity of 40kV/µs to reduce interference. Offers a maximum DC forward current (If) specified at 25 mA. Facilitates a maximum output current level set as 500ns, 500ns. Offers information on high and low output current settings at 2A, 2A. Features peak output current measured at 2.5A. Mounting configuration Through Hole for structural stability. Overall channels 1 for input/output or communication purposes. Temperature range -40°C ~ 105°C for environmental conditions impacting thermal efficiency. Type of housing Tube for safeguarding or transporting components. Style of the enclosure/case 10-DIP (0.512", 13.01mm) that offers mechanical and thermal protection. Type of package 10-DIP that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Highest tpLH/tpHL latency 500ns, 500ns for rapid applications. Maximum pulse width deviation 300ns to maintain signal integrity. Typical rise and fall duration 100ns, 100ns for signal transitions. Supplier package type 10-DIP for component selection. Voltage requirement 15V ~ 30V for electrical specifications. The primary technology platform Optical Coupling linked to the product category. Common forward voltage Vf 1.6V for diode operation. Isolation voltage 7500Vrms for electrical safety. The supply voltage output 15V ~ 30V used to power the device.
