Description

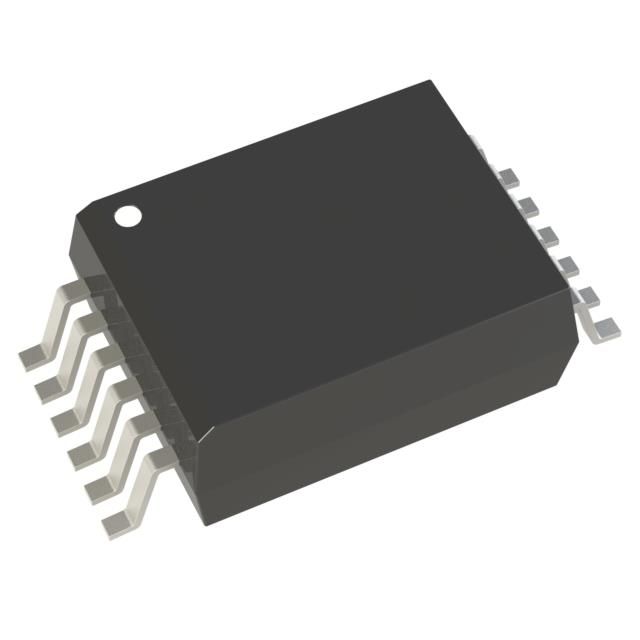

Complies with the criteria of entities acknowledged as CSA, IEC/EN/DIN, UR, VDE. Indicates 1 channels present for improved performance. Ensures a minimum common-mode transient immunity of 100kV/µs to reduce interference. Offers a maximum DC forward current (If) specified at 20 mA. Facilitates a maximum output current level set as 95ns, 95ns. Offers information on high and low output current settings at 6A, 6A. Features peak output current measured at 10A. Evaluated as Automotive grade for quality control. Mounting configuration Surface Mount for structural stability. Overall channels 1 for input/output or communication purposes. Temperature range -40°C ~ 125°C for environmental conditions impacting thermal efficiency. Type of housing Tube for safeguarding or transporting components. Style of the enclosure/case 12-BSOP (0.295", 7.50mm Width) that offers mechanical and thermal protection. Type of package 12-SO Stretched that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Highest tpLH/tpHL latency 95ns, 95ns for rapid applications. Maximum pulse width deviation 25ns to maintain signal integrity. Certification AEC-Q100 for compliance with testing or regulatory standards. Typical rise and fall duration 7ns, 7ns for signal transitions. Supplier package type 12-SO Stretched for component selection. Voltage requirement 15V ~ 30V for electrical specifications. The primary technology platform Optical Coupling linked to the product category. Common forward voltage Vf 1.55V for diode operation. Isolation voltage 5000Vrms for electrical safety. The supply voltage output 15V ~ 30V used to power the device.
