Description

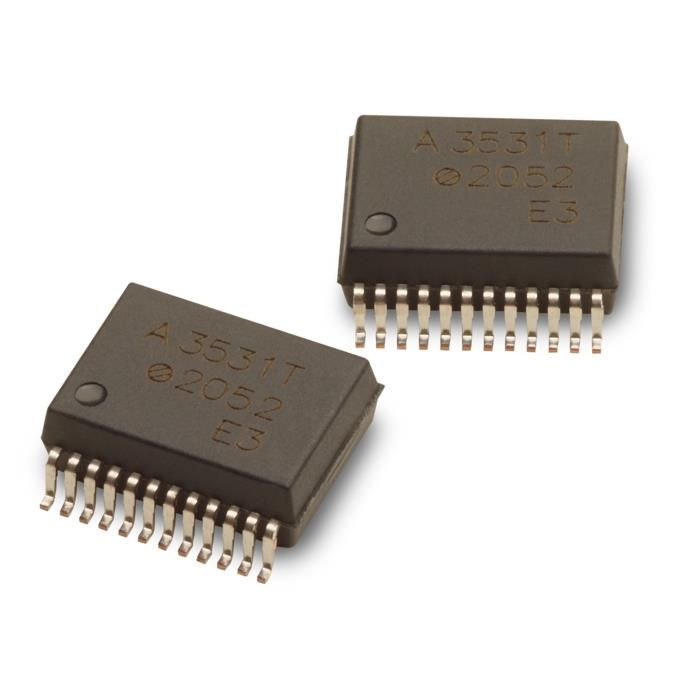

Complies with the criteria of entities acknowledged as CSA, IEC/EN/DIN, UR, VDE. Indicates 1 channels present for improved performance. Ensures a minimum common-mode transient immunity of 50kV/µs to reduce interference. Offers a maximum DC forward current (If) specified at 20 mA. Facilitates a maximum output current level set as 200ns, 200ns. Offers information on high and low output current settings at 1.5A, 1.5A. Features peak output current measured at 1.5A. Evaluated as Automotive grade for quality control. Mounting configuration Surface Mount for structural stability. Overall channels 1 for input/output or communication purposes. Temperature range -40°C ~ 125°C for environmental conditions impacting thermal efficiency. Type of housing Tube for safeguarding or transporting components. Style of the enclosure/case 24-SOIC (0.295", 7.50mm Width) that offers mechanical and thermal protection. Type of package 24-SOIC that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Highest tpLH/tpHL latency 200ns, 200ns for rapid applications. Maximum pulse width deviation 100ns to maintain signal integrity. Certification AEC-Q100 for compliance with testing or regulatory standards. Typical rise and fall duration 15ns, 15ns for signal transitions. Supplier package type 24-SOIC for component selection. Voltage requirement 17.4V ~ 19.2V for electrical specifications. The primary technology platform Optical Coupling linked to the product category. Common forward voltage Vf 1.55V for diode operation. Isolation voltage 5000Vrms for electrical safety. The supply voltage output 17.4V ~ 19.2V used to power the device.
