Description

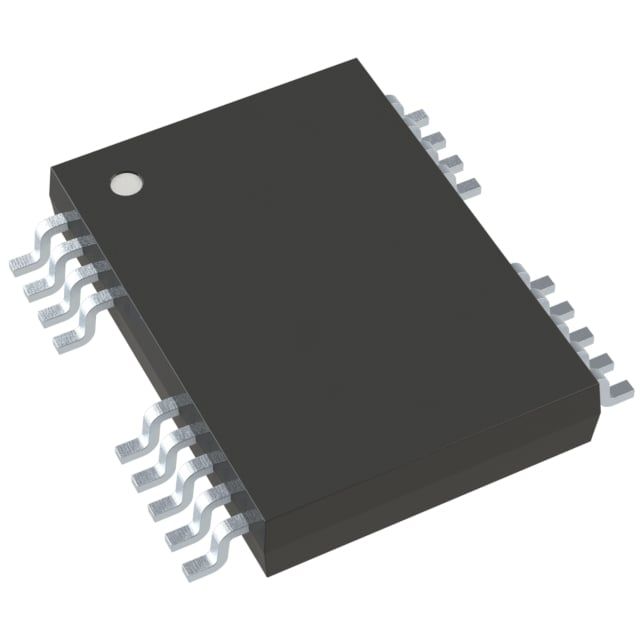

Complies with the criteria of entities acknowledged as CSA, IEC/EN, UL. Indicates 2 channels present for improved performance. Ensures a minimum common-mode transient immunity of 100kV/µs to reduce interference. Offers a maximum DC forward current (If) specified at 20 mA. Facilitates a maximum output current level set as 95ns, 95ns. Offers information on high and low output current settings at 6A, 6A. Features peak output current measured at 10A. Evaluated as Automotive grade for quality control. Mounting configuration Surface Mount for structural stability. Overall channels 2 for input/output or communication purposes. Temperature range -40°C ~ 125°C for environmental conditions impacting thermal efficiency. Type of housing Bulk for safeguarding or transporting components. Style of the enclosure/case 24-SOIC (0.295", 7.50mm Width), 18 Leads that offers mechanical and thermal protection. Type of package 24-SO that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Highest tpLH/tpHL latency 95ns, 95ns for rapid applications. Maximum pulse width deviation 20ns to maintain signal integrity. Certification AEC-Q100 for compliance with testing or regulatory standards. Typical rise and fall duration 7ns, 7ns for signal transitions. Supplier package type 24-SO for component selection. Voltage requirement 10V ~ 25V for electrical specifications. The primary technology platform Capacitive Coupling linked to the product category. Common forward voltage Vf 1.55V for diode operation. Isolation voltage 5000Vrms for electrical safety. The supply voltage output 10V ~ 25V used to power the device.
