Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 3750 | ₹ 225.85000 | ₹ 8,46,937.50 |
| 2500 | ₹ 228.36000 | ₹ 5,70,900.00 |
| 1250 | ₹ 233.37000 | ₹ 2,91,712.50 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Availability Status | Not For New Designs | |
| Core Technology Platform | Capacitive Coupling | |
| Device Type Classification | General Purpose | |
| Galvanic Isolation Supply | No | |
| Audio/Video Channel Count | 3 | |
| Dual Side Input Counts | 3/0 | |
| Signal Path Design | Unidirectional | |
| Isolation Barrier Voltage | 2500Vrms | |
| Minimum Surge Tolerance | 25kV/µs (Typ) | |
| Transfer Speed Mbps | 150Mbps | |
| Max Low-to-High/High-to-Low Delay | 9.5ns, 9.5ns | |
| Max Pulse Skew | 2.5ns | |
| Typical Edge Transition Time | 3.8ns, 2.8ns | |
| Power Supply Voltage | 2.7V ~ 5.5V | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Ambient Temp Range | -40°C ~ 125°C | |
| Attachment Mounting Style | Surface Mount | |

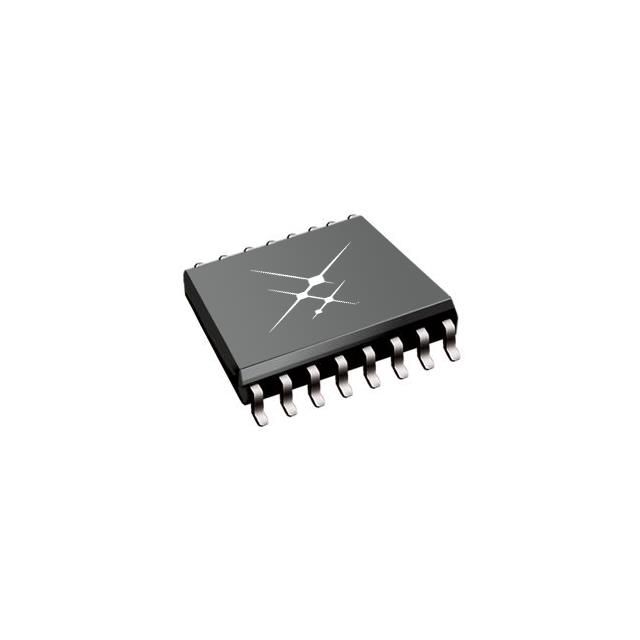

| Component Housing Style | 16-SOIC (0.154", 3.90mm Width) | |
| Vendor Package Type | 16-SOIC |
Description
Organized by channel type referred to as Unidirectional. Indicates 3 channels present for improved performance. Ensures a minimum common-mode transient immunity of 25kV/µs (Typ) to reduce interference. Facilitates a maximum output current level set as 9.5ns, 9.5ns. Delivers a data transfer rate measured at 150Mbps for rapid operations. Demonstrates a sampling rate capability indicated as 150Mbps. Inputs on side 1/side 2 permit 3/0 configuration. Supplies No isolated power to maintain safe circuitry. Mounting configuration Surface Mount for structural stability. Overall channels 3 for input/output or communication purposes. Temperature range -40°C ~ 125°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case 16-SOIC (0.154", 3.90mm Width) that offers mechanical and thermal protection. Type of package 16-SOIC that preserves the integrity of the device. Product status Not For New Designs concerning availability and lifecycle. Highest tpLH/tpHL latency 9.5ns, 9.5ns for rapid applications. Maximum pulse width deviation 2.5ns to maintain signal integrity. Typical rise and fall duration 3.8ns, 2.8ns for signal transitions. Supplier package type 16-SOIC for component selection. Voltage requirement 2.7V ~ 5.5V for electrical specifications. The primary technology platform Capacitive Coupling linked to the product category. Type classification General Purpose for specifications. Isolation voltage 2500Vrms for electrical safety. Voltage supply 2.7V ~ 5.5V for device operation.
