Description

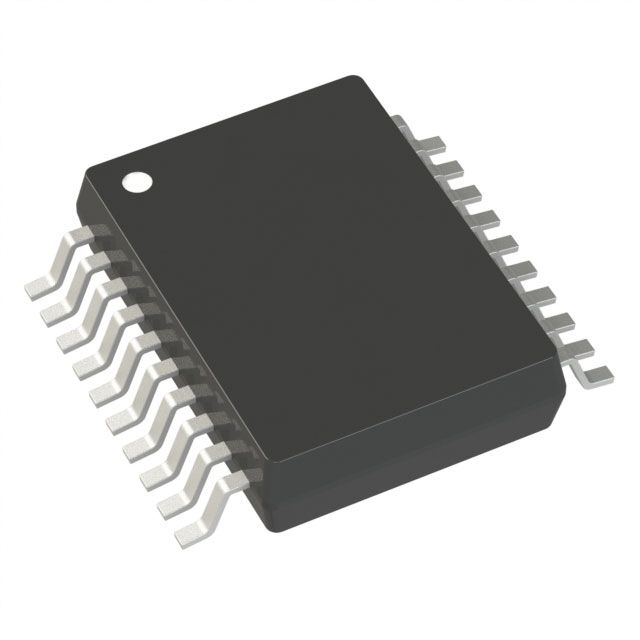

Organized by channel type referred to as Unidirectional. Indicates 2 channels present for improved performance. Ensures a minimum common-mode transient immunity of 35kV/µs (Typ) to reduce interference. Facilitates a maximum output current level set as 45ns, 45ns. Evaluated as Automotive grade for quality control. Inputs on side 1/side 2 permit 2/0 configuration. Supplies No isolated power to maintain safe circuitry. Mounting configuration Surface Mount for structural stability. Overall channels 2 for input/output or communication purposes. Temperature range -40°C ~ 125°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 20-SSOP (0.240", 6.10mm Width) that offers mechanical and thermal protection. Type of package 20-SSOP-BW that preserves the integrity of the device. Product status Not For New Designs concerning availability and lifecycle. Highest tpLH/tpHL latency 45ns, 45ns for rapid applications. Certification AEC-Q100 for compliance with testing or regulatory standards. Typical rise and fall duration 2.5ns, 2.5ns for signal transitions. Supplier package type 20-SSOP-BW for component selection. Voltage requirement 4.5V ~ 5.5V for electrical specifications. The primary technology platform Magnetic Coupling linked to the product category. Type classification General Purpose for specifications. Isolation voltage 2500Vrms for electrical safety. Voltage supply 4.5V ~ 5.5V for device operation.
