Description

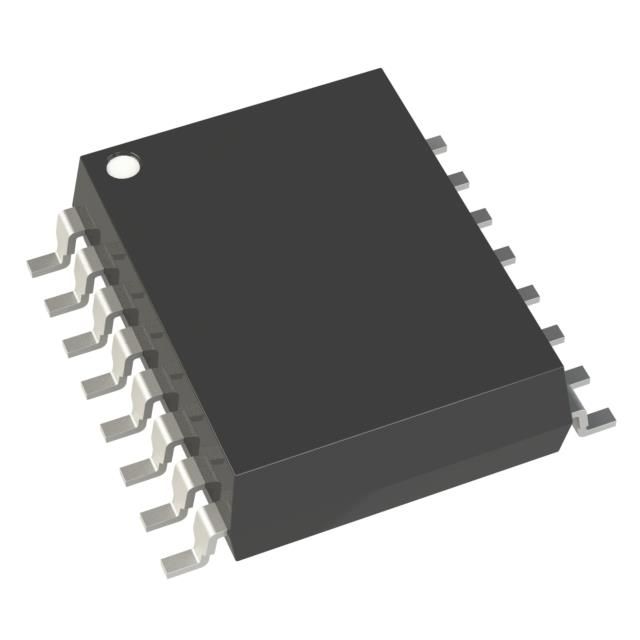

Organized by channel type referred to as Bidirectional. Indicates 4 channels present for improved performance. Ensures a minimum common-mode transient immunity of 100kV/µs to reduce interference. Facilitates a maximum output current level set as 26ns, 26ns. Delivers a data transfer rate measured at 40Mbps for rapid operations. Demonstrates a sampling rate capability indicated as 40Mbps. Inputs on side 1/side 2 permit 2/2 configuration. Supplies No isolated power to maintain safe circuitry. Mounting configuration Surface Mount for structural stability. Overall channels 4 for input/output or communication purposes. Temperature range -40°C ~ 125°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 16-SOIC (0.295", 7.50mm Width) that offers mechanical and thermal protection. Type of package PG-DSO-16-46 that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Highest tpLH/tpHL latency 26ns, 26ns for rapid applications. Maximum pulse width deviation 3ns to maintain signal integrity. Typical rise and fall duration 4ns, 4ns (Max) for signal transitions. Classification series for the product or component ISOFACE™. Supplier package type PG-DSO-16-46 for component selection. Voltage requirement 2.7V ~ 6.5V for electrical specifications. The primary technology platform Magnetic Coupling linked to the product category. Type classification SPI for specifications. Isolation voltage 5700Vrms for electrical safety. Voltage supply 2.7V ~ 6.5V for device operation.
