Description

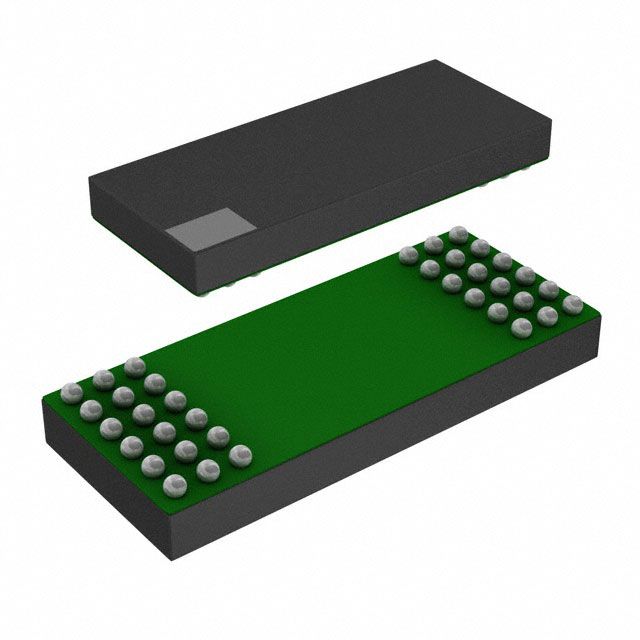

Organized by channel type referred to as Unidirectional. Indicates 6 channels present for improved performance. Ensures a minimum common-mode transient immunity of 50kV/µs to reduce interference. Facilitates a maximum output current level set as 100ns, 100ns. Delivers a data transfer rate measured at 10MHz for rapid operations. Demonstrates a sampling rate capability indicated as 10MHz. Inputs on side 1/side 2 permit 3/3 configuration. Supplies Yes isolated power to maintain safe circuitry. Mounting configuration Surface Mount for structural stability. Overall channels 6 for input/output or communication purposes. Temperature range -40°C ~ 125°C for environmental conditions impacting thermal efficiency. Type of housing Tray for safeguarding or transporting components. Style of the enclosure/case 36-BGA Module that offers mechanical and thermal protection. Type of package 36-BGA (22x6.25) that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Highest tpLH/tpHL latency 100ns, 100ns for rapid applications. Maximum pulse width deviation 50ns to maintain signal integrity. Typical rise and fall duration 350ns, 250ns (Max) for signal transitions. Classification series for the product or component µModule®. Supplier package type 36-BGA (22x6.25) for component selection. Voltage requirement 1.62V ~ 5.5V for electrical specifications. The primary technology platform Magnetic Coupling linked to the product category. Type classification SPI for specifications. Isolation voltage 7500Vrms for electrical safety. Voltage supply 1.62V ~ 5.5V for device operation.
