Description

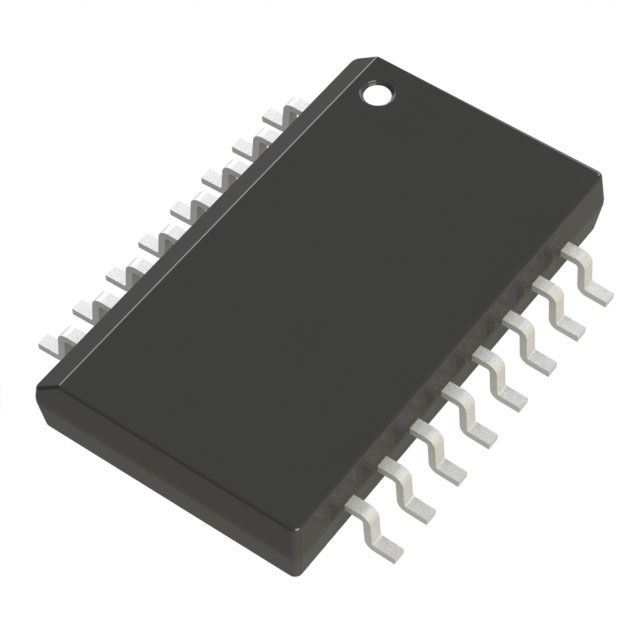

Organized by channel type referred to as Bidirectional, Unidirectional. Indicates 2 channels present for improved performance. Ensures a minimum common-mode transient immunity of 25kV/µs to reduce interference. Delivers a data transfer rate measured at 1Mbps for rapid operations. Demonstrates a sampling rate capability indicated as 1Mbps. Inputs on side 1/side 2 permit 2/1 configuration. Supplies No isolated power to maintain safe circuitry. Mounting configuration Surface Mount for structural stability. Overall channels 2 for input/output or communication purposes. Temperature range -40°C ~ 105°C for environmental conditions impacting thermal efficiency. Type of housing Tube for safeguarding or transporting components. Style of the enclosure/case 16-SOIC (0.295", 7.50mm Width) that offers mechanical and thermal protection. Type of package 16-SOIC-IC that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Maximum pulse width deviation 145ns, 85ns to maintain signal integrity. Classification series for the product or component iCoupler®. Supplier package type 16-SOIC-IC for component selection. Voltage requirement 3V ~ 5.5V for electrical specifications. The primary technology platform Magnetic Coupling linked to the product category. Type classification I2C for specifications. Isolation voltage 5000Vrms for electrical safety. Voltage supply 3V ~ 5.5V for device operation.
