Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tube | |
| Primary Function Mode | Step-Down | |
| Output Setup Options | Positive or Negative | |
| Circuit Topology Design | Buck | |
| Exit Signal Category | Adjustable | |
| Signal Output Quantity | 1 | |
| Minimum Input Voltage | 8V | |
| Maximum Input Voltage | 35V | |
| Minimum Fixed Output | ±1.26V | |
| Peak Output Voltage | 35V, -30V | |
| Output Delivery Amps | 3.5A | |
| Switching Cycle Rate | 70kHz | |
| Sync Rectification Mode | No | |
| Ambient Temp Range | -20°C ~ 80°C (TA) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Through Hole | |

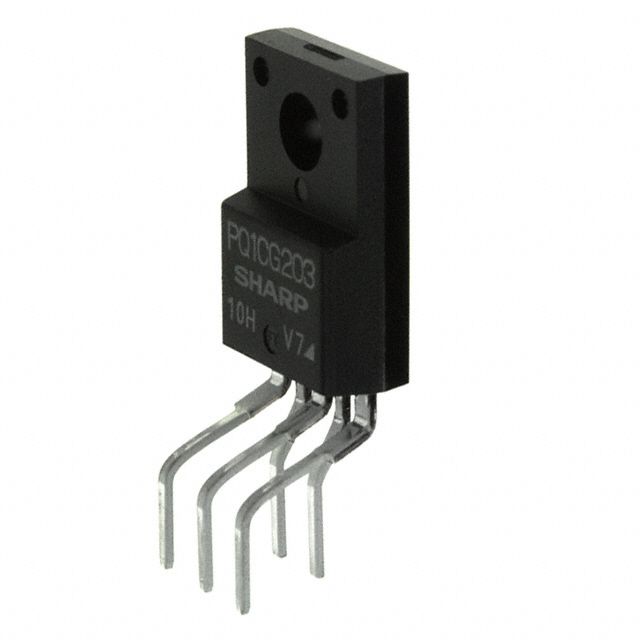

| Component Housing Style | TO-220-5 Formed Leads | |
| Vendor Package Type | TO-220-5 |
Description
Yields output current measured at 3.5A. Engineered for a 70kHz switching frequency ideal for high-speed electronic uses. Engineered with Step-Down features for versatile component usage. The input voltage established at 8V for reliable performance. Mounting configuration Through Hole for structural stability. Overall outputs 1 for device connections. Temperature range -20°C ~ 80°C (TA) for environmental conditions impacting thermal efficiency. Preferences Positive or Negative for establishing system output configurations. Type Adjustable for ensuring compatibility with output systems. Voltage 35V, -30V for optimal output electric potential. Type of housing Tube for safeguarding or transporting components. Style of the enclosure/case TO-220-5 Formed Leads that offers mechanical and thermal protection. Type of package TO-220-5 that preserves the integrity of the device. Supplier package type TO-220-5 for component selection. The ability for synchronous rectification No to improve energy efficiency. Layout design Buck for electrical systems or configurations. Maximum input voltage 35V for safeguarding. Minimum input voltage 8V for operation. The maximum output voltage 35V, -30V for devices. The lowest or steady output voltage ±1.26V for circuits.
