Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1000 | ₹ 446.73000 | ₹ 4,46,730.00 |
| 500 | ₹ 457.68000 | ₹ 2,28,840.00 |
| 250 | ₹ 470.99000 | ₹ 1,17,747.50 |
| 100 | ₹ 493.07000 | ₹ 49,307.00 |
| 25 | ₹ 539.39000 | ₹ 13,484.75 |
| 10 | ₹ 581.53000 | ₹ 5,815.30 |
| 1 | ₹ 750.07000 | ₹ 750.07 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tape & Reel (TR)Cut Tape (CT) | |
| Availability Status | Obsolete | |
| Primary Function Mode | Step-Up/Step-Down | |
| Output Setup Options | Positive | |
| Circuit Topology Design | Buck-Boost | |
| Exit Signal Category | Fixed | |
| Signal Output Quantity | 1 | |
| Minimum Input Voltage | 2.5V | |
| Maximum Input Voltage | 42V | |
| Minimum Fixed Output | 3.3V | |
| Peak Output Voltage | - | |
| Output Delivery Amps | 2.4A | |
| Switching Cycle Rate | 200kHz ~ 2.1MHz | |
| Sync Rectification Mode | Yes | |
| Ambient Temp Range | -40°C ~ 125°C (TA) | |
| Quality Grade Level | Automotive | |
| Certification Qualification | AEC-Q100 | |
| Attachment Mounting Style | Surface Mount | |

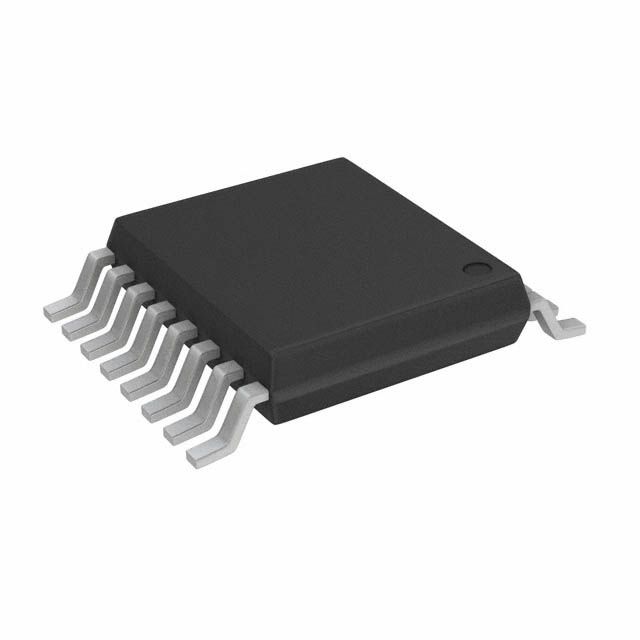

| Component Housing Style | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad | |
| Vendor Package Type | 16-TSSOP |
Description
Yields output current measured at 2.4A. Engineered for a 200kHz ~ 2.1MHz switching frequency ideal for high-speed electronic uses. Engineered with Step-Up/Step-Down features for versatile component usage. Evaluated as Automotive grade for quality control. The input voltage established at 2.5V for reliable performance. Mounting configuration Surface Mount for structural stability. Overall outputs 1 for device connections. Temperature range -40°C ~ 125°C (TA) for environmental conditions impacting thermal efficiency. Preferences Positive for establishing system output configurations. Type Fixed for ensuring compatibility with output systems. Type of housing Tape & Reel (TR)Cut Tape (CT) for safeguarding or transporting components. Style of the enclosure/case 16-TSSOP (0.173", 4.40mm Width) Exposed Pad that offers mechanical and thermal protection. Type of package 16-TSSOP that preserves the integrity of the device. Product status Obsolete concerning availability and lifecycle. Certification AEC-Q100 for compliance with testing or regulatory standards. Supplier package type 16-TSSOP for component selection. The ability for synchronous rectification Yes to improve energy efficiency. Layout design Buck-Boost for electrical systems or configurations. Maximum input voltage 42V for safeguarding. Minimum input voltage 2.5V for operation. The lowest or steady output voltage 3.3V for circuits.
