Description

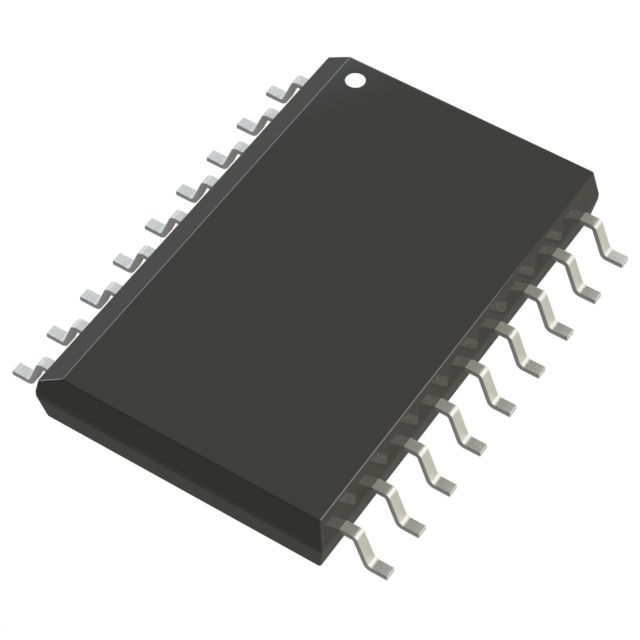

Incorporates clock synchronization features rated at No. Is equipped with control features recognized as Dead Time Control, Enable, Frequency Control, Reset, Soft Start. Allows the maximum duty cycle rated at 49%. Engineered for a 1Hz ~ 500kHz switching frequency ideal for high-speed electronic uses. Engineered with Step-Down, Step-Up/Step-Down features for versatile component usage. Evaluated as Military grade for quality control. Mounting configuration Surface Mount for structural stability. Overall outputs 2 for device connections. Temperature range 0°C ~ 70°C (TA) for environmental conditions impacting thermal efficiency. Preferences Positive for establishing system output configurations. Number 1 for scenarios that need multi-phase output. Type Transistor Driver for ensuring compatibility with output systems. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case 18-SOIC (0.295", 7.50mm Width) that offers mechanical and thermal protection. Type of package 18-SOIC that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Certification MIL-STD-883 for compliance with testing or regulatory standards. Supplier package type 18-SOIC for component selection. Voltage requirement 8V ~ 35V for electrical specifications. The ability for synchronous rectification Yes to improve energy efficiency. Layout design Buck, Flyback for electrical systems or configurations. Vcc/Vdd voltage supply 8V ~ 35V for electronic devices.
