Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tube | |
| Availability Status | Obsolete | |
| Exit Signal Category | Transistor Driver | |
| Primary Function Mode | Step-Down | |
| Output Setup Options | Positive | |
| Circuit Topology Design | Buck | |
| Signal Output Quantity | 1 | |
| Power Phase Count | 1 | |
| Core Supply Voltage | 4.5V ~ 38V | |
| Switching Cycle Rate | 400kHz | |
| Maximum Duty Percentage | 98% | |
| Sync Rectification Mode | Yes | |
| Synchronization Signal | No | |
| Serial Communication Ports | - | |
| Adjustment Capabilities | Enable, Soft Start | |
| Ambient Temp Range | -40°C ~ 85°C (TA) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |

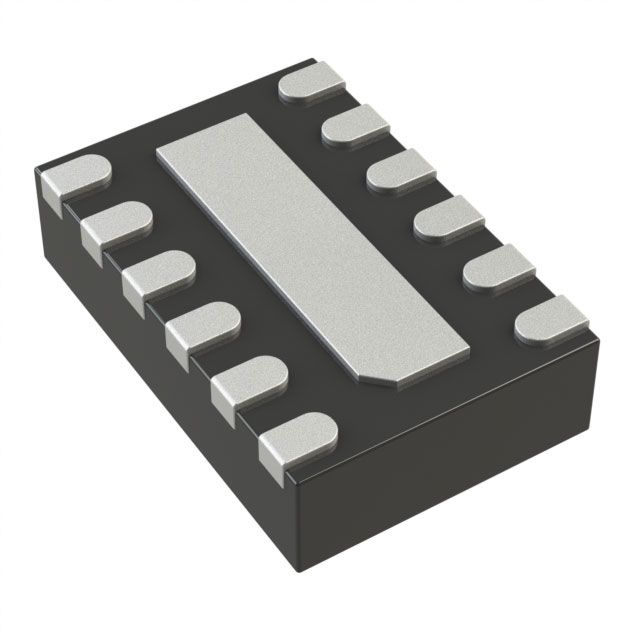

| Component Housing Style | 12-WFDFN Exposed Pad | |
| Vendor Package Type | 12-DFN (3x2) |
Description
Incorporates clock synchronization features rated at No. Is equipped with control features recognized as Enable, Soft Start. Allows the maximum duty cycle rated at 98%. Engineered for a 400kHz switching frequency ideal for high-speed electronic uses. Engineered with Step-Down features for versatile component usage. Mounting configuration Surface Mount for structural stability. Overall outputs 1 for device connections. Temperature range -40°C ~ 85°C (TA) for environmental conditions impacting thermal efficiency. Preferences Positive for establishing system output configurations. Number 1 for scenarios that need multi-phase output. Type Transistor Driver for ensuring compatibility with output systems. Type of housing Tube for safeguarding or transporting components. Style of the enclosure/case 12-WFDFN Exposed Pad that offers mechanical and thermal protection. Type of package 12-DFN (3x2) that preserves the integrity of the device. Product status Obsolete concerning availability and lifecycle. Supplier package type 12-DFN (3x2) for component selection. Voltage requirement 4.5V ~ 38V for electrical specifications. The ability for synchronous rectification Yes to improve energy efficiency. Layout design Buck for electrical systems or configurations. Vcc/Vdd voltage supply 4.5V ~ 38V for electronic devices.
