Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tube | |
| Availability Status | Obsolete | |
| Exit Signal Category | Transistor Driver | |
| Primary Function Mode | Step-Up | |
| Output Setup Options | Positive | |
| Circuit Topology Design | Boost | |
| Signal Output Quantity | 2 | |
| Power Phase Count | 2 | |
| Core Supply Voltage | 6V ~ 40V | |
| Switching Cycle Rate | 154kHz ~ 465kHz | |
| Maximum Duty Percentage | 94% | |
| Sync Rectification Mode | Yes | |
| Synchronization Signal | Yes | |
| Serial Communication Ports | - | |
| Adjustment Capabilities | Enable, Frequency Control, Reset, Soft Start | |
| Ambient Temp Range | -40°C ~ 125°C | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |

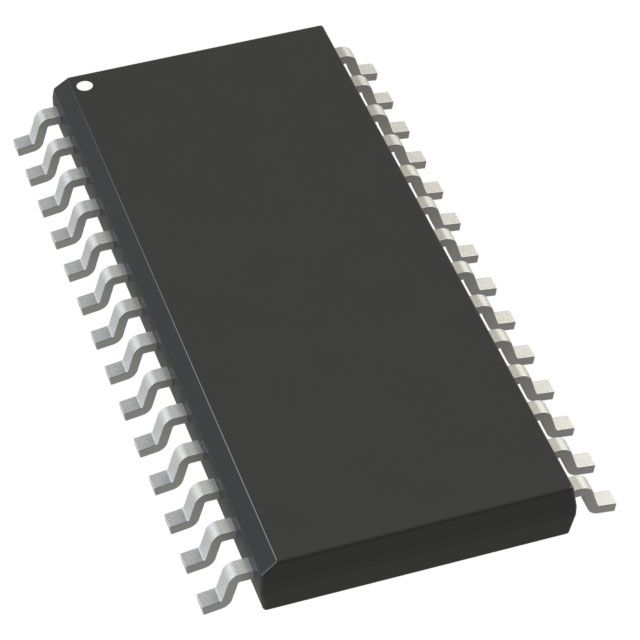

| Component Housing Style | 28-TSSOP (0.173", 4.40mm Width) Exposed Pad | |
| Vendor Package Type | 28-TSSOP-EP |
Description
Incorporates clock synchronization features rated at Yes. Is equipped with control features recognized as Enable, Frequency Control, Reset, Soft Start. Allows the maximum duty cycle rated at 94%. Engineered for a 154kHz ~ 465kHz switching frequency ideal for high-speed electronic uses. Engineered with Step-Up features for versatile component usage. Mounting configuration Surface Mount for structural stability. Overall outputs 2 for device connections. Temperature range -40°C ~ 125°C for environmental conditions impacting thermal efficiency. Preferences Positive for establishing system output configurations. Number 2 for scenarios that need multi-phase output. Type Transistor Driver for ensuring compatibility with output systems. Type of housing Tube for safeguarding or transporting components. Style of the enclosure/case 28-TSSOP (0.173", 4.40mm Width) Exposed Pad that offers mechanical and thermal protection. Type of package 28-TSSOP-EP that preserves the integrity of the device. Product status Obsolete concerning availability and lifecycle. Supplier package type 28-TSSOP-EP for component selection. Voltage requirement 6V ~ 40V for electrical specifications. The ability for synchronous rectification Yes to improve energy efficiency. Layout design Boost for electrical systems or configurations. Vcc/Vdd voltage supply 6V ~ 40V for electronic devices.
