Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tube | |
| Availability Status | Obsolete | |
| Intended Uses | Video | |
| Signal Mux/Demux Channels | 1:1 | |
| Circuit Switching Type | SPST | |
| Audio/Video Channel Count | 2 | |
| Maximum On Resistance | 20Ohm | |
| Single Positive Supply | 2.7V ~ 12V | |
| Dual Symmetric Supply | ±2.6V ~ 6V | |
| 3dB Bandwidth | 300MHz | |
| Key Product Highlights | Bi-Directional, Break-Before-Make, T-Switch Configuration | |
| Ambient Temp Range | 0°C ~ 70°C (TA) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |

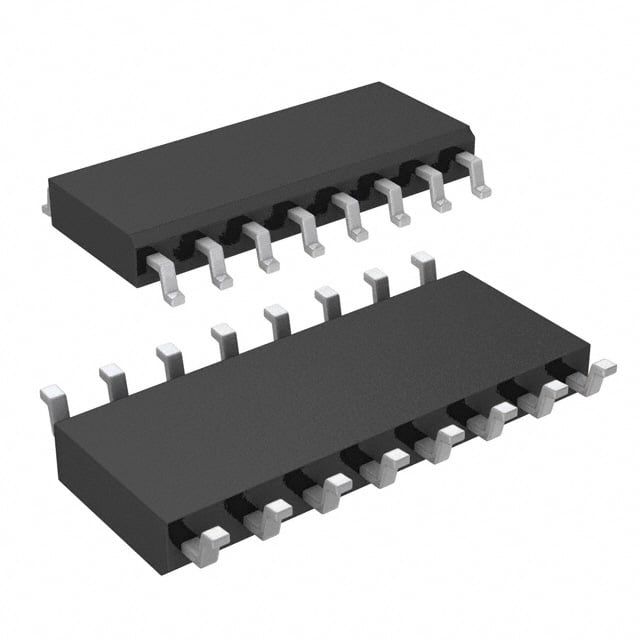

| Component Housing Style | 16-SOIC (0.154", 3.90mm Width) | |
| Vendor Package Type | 16-SOIC |
Description
Delivers a -3dB bandwidth of 300MHz to maintain reliable signal quality. Perfectly designed for situations involving Video. Indicates 2 channels present for improved performance. Equipped with features categorized as Bi-Directional, Break-Before-Make, T-Switch Configuration. Mounting configuration Surface Mount for structural stability. Mux/demux pathway 1:1 for signal control. Overall channels 2 for input/output or communication purposes. Resistance during the on-state 20Ohm for effective conduction. Peak resistance in the on-state 20Ohm for electrical efficiency. Temperature range 0°C ~ 70°C (TA) for environmental conditions impacting thermal efficiency. Type of housing Tube for safeguarding or transporting components. Style of the enclosure/case 16-SOIC (0.154", 3.90mm Width) that offers mechanical and thermal protection. Type of package 16-SOIC that preserves the integrity of the device. Product status Obsolete concerning availability and lifecycle. Supplier package type 16-SOIC for component selection. Circuit switch SPST for functional operations. Dual voltage supply for circuits at V± ±2.6V ~ 6V. Single voltage supply for electronic devices at V+ 2.7V ~ 12V.
