Description

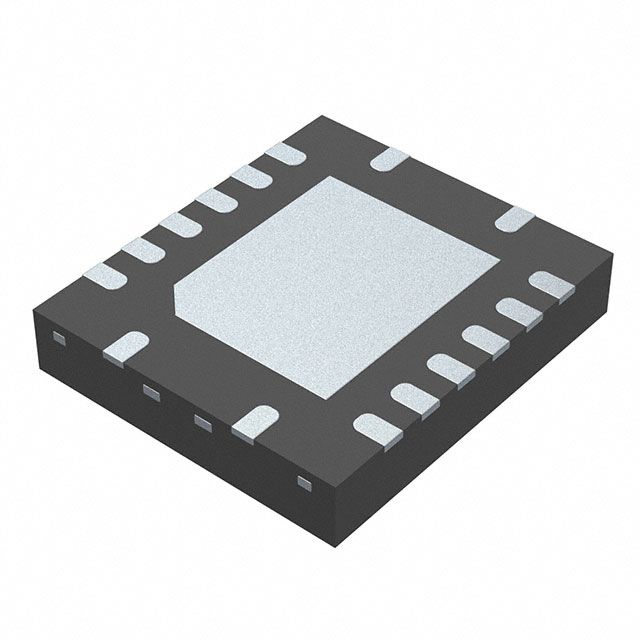

Supplies peak output current defined as 4A. Features fault protection capabilities quantified at Over Load, Over Temperature, Short Circuit, UVLO. Equipped with features categorized as Shutdown. Configured with Non-Inverting input type for diverse applications. Designed for Logic ease of use and user interaction. Mounting configuration Surface Mount for structural stability. Overall outputs 1 for device connections. Resistance during the on-state 80mOhm for effective conduction. Temperature range -40°C ~ 125°C (TJ) for environmental conditions impacting thermal efficiency. Preferences High Side for establishing system output configurations. Type N-Channel for ensuring compatibility with output systems. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 16-WFQFN Exposed Pad that offers mechanical and thermal protection. Type of package 16-WQFN (4x3.5) that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Input-output ratio 1:1 for electrical or mechanical conversion. Mean Rds(on) 80mOhm for MOSFET functionality. Supplier package type 16-WQFN (4x3.5) for component selection. Voltage requirement Not Required for electrical specifications. Classification of switch Relay, Solenoid Driver for equipment selection. Load voltage 4V ~ 40V required for devices. Vcc/Vdd voltage supply Not Required for electronic devices.
