Description

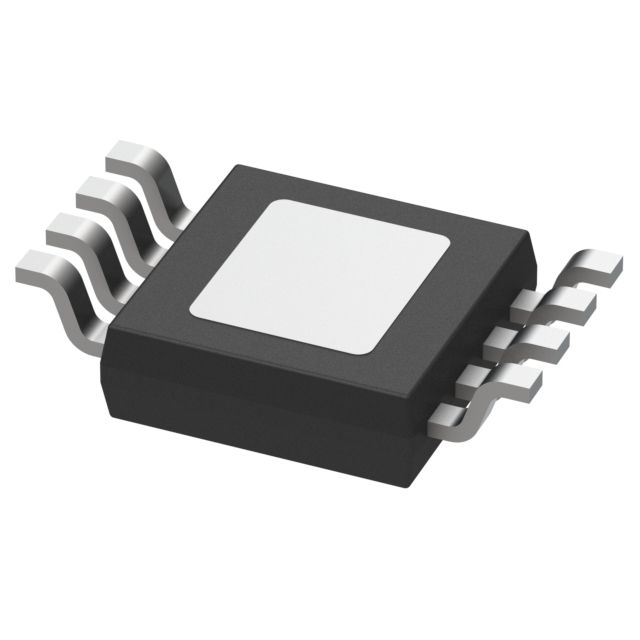

Supplies peak output current defined as 1A. Features fault protection capabilities quantified at Current Limiting (Fixed), Over Temperature, UVLO. Equipped with features categorized as Load Discharge, Status Flag. Configured with Non-Inverting input type for diverse applications. Designed for On/Off ease of use and user interaction. Mounting configuration Surface Mount for structural stability. Overall outputs 1 for device connections. Resistance during the on-state 70mOhm for effective conduction. Temperature range -40°C ~ 125°C (TJ) for environmental conditions impacting thermal efficiency. Preferences High Side for establishing system output configurations. Type N-Channel for ensuring compatibility with output systems. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel®Bulk for safeguarding or transporting components. Style of the enclosure/case 8-PowerTSSOP, 8-MSOP (0.118", 3.00mm Width) that offers mechanical and thermal protection. Type of package 8-HVSSOP that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Input-output ratio 1:1 for electrical or mechanical conversion. Mean Rds(on) 70mOhm for MOSFET functionality. Supplier package type 8-HVSSOP for component selection. Voltage requirement Not Required for electrical specifications. Classification of switch General Purpose for equipment selection. Load voltage 2.7V ~ 5.5V required for devices. Vcc/Vdd voltage supply Not Required for electronic devices.
