Description

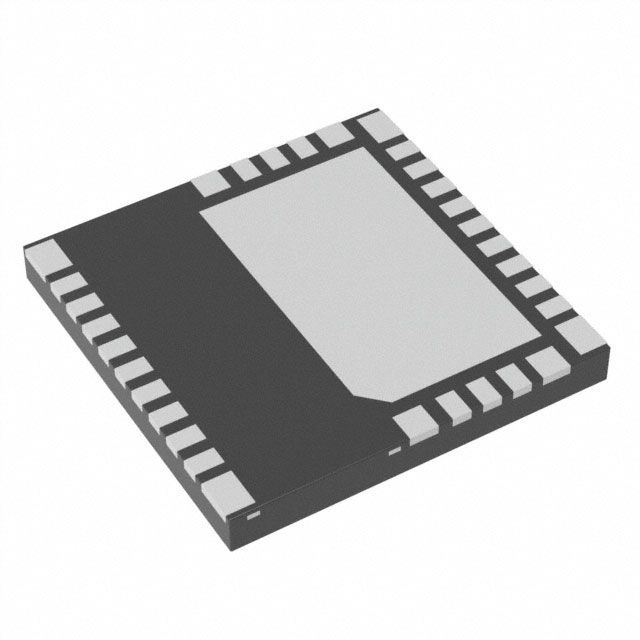

Supplies peak output current defined as 12A. Features fault protection capabilities quantified at Over Current, Over Temperature, UVLO. Equipped with features categorized as Bootstrap Circuit, 5V Regulated Output. Configured with Non-Inverting input type for diverse applications. Designed for Logic, PWM ease of use and user interaction. Mounting configuration Surface Mount for structural stability. Overall outputs 1 for device connections. Resistance during the on-state 70mOhm for effective conduction. Temperature range -40°C ~ 125°C (TJ) for environmental conditions impacting thermal efficiency. Preferences High Side for establishing system output configurations. Type N-Channel for ensuring compatibility with output systems. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 32-VQFN Exposed Pad that offers mechanical and thermal protection. Type of package 32-VQFN (8x8) that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Input-output ratio 1:1 for electrical or mechanical conversion. Mean Rds(on) 70mOhm for MOSFET functionality. Supplier package type 32-VQFN (8x8) for component selection. Voltage requirement 9.5V ~ 18V for electrical specifications. Classification of switch Load Switch for equipment selection. Load voltage 480V (Max) required for devices. Vcc/Vdd voltage supply 9.5V ~ 18V for electronic devices.
