Description

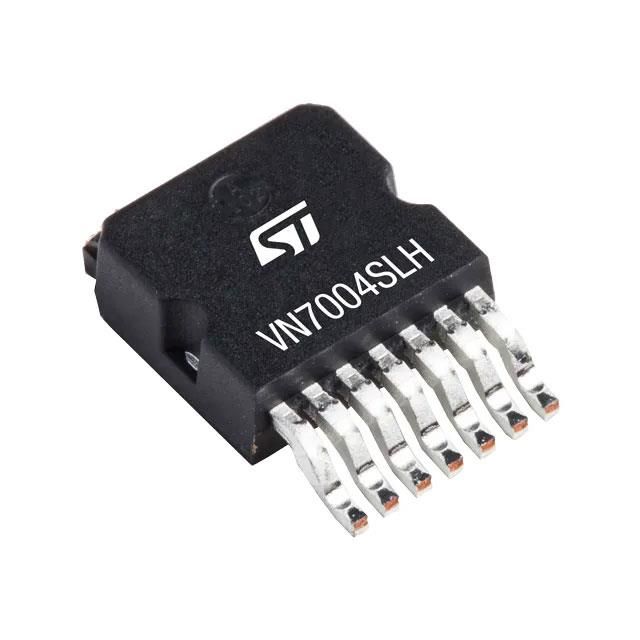

Supplies peak output current defined as 135A. Features fault protection capabilities quantified at Current Limiting (Adjustable), Open Load Detect, Over Temperature, Over Voltage, Reverse Current, UVLO. Equipped with features categorized as Load Discharge, Status Flag. Configured with Non-Inverting input type for diverse applications. Designed for Logic ease of use and user interaction. Mounting configuration Surface Mount for structural stability. Overall outputs 1 for device connections. Resistance during the on-state 4mOhm for effective conduction. Temperature range -40°C ~ 150°C (TJ) for environmental conditions impacting thermal efficiency. Preferences High Side for establishing system output configurations. Type N-Channel for ensuring compatibility with output systems. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case OctaPAK (7 Leads + Tab) that offers mechanical and thermal protection. Type of package OctaPAK 7+1 that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Input-output ratio 1:1 for electrical or mechanical conversion. Mean Rds(on) 4mOhm for MOSFET functionality. Supplier package type OctaPAK 7+1 for component selection. Voltage requirement 4V ~ 28V for electrical specifications. Classification of switch General Purpose for equipment selection. Vcc/Vdd voltage supply 4V ~ 28V for electronic devices.
