Description

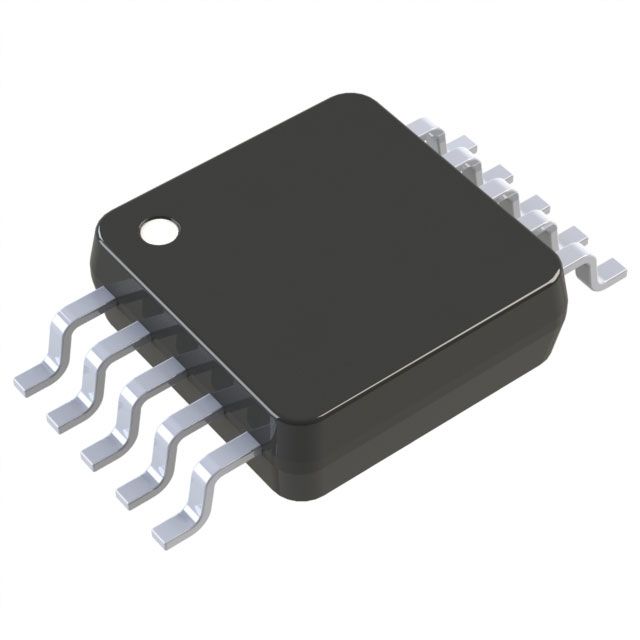

Supplies peak output current defined as 1A. Features fault protection capabilities quantified at Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO. Configured with Non-Inverting input type for diverse applications. Designed for On/Off ease of use and user interaction. Mounting configuration Surface Mount for structural stability. Overall outputs 1 for device connections. Resistance during the on-state 110mOhm for effective conduction. Temperature range -40°C ~ 125°C (TJ) for environmental conditions impacting thermal efficiency. Preferences High Side for establishing system output configurations. Type N-Channel for ensuring compatibility with output systems. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) that offers mechanical and thermal protection. Type of package 8-MSOP that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Input-output ratio 1:1 for electrical or mechanical conversion. Mean Rds(on) 110mOhm for MOSFET functionality. Supplier package type 8-MSOP for component selection. Voltage requirement Not Required for electrical specifications. Classification of switch General Purpose for equipment selection. Load voltage 2.7V ~ 5.5V required for devices. Vcc/Vdd voltage supply Not Required for electronic devices.
