Description

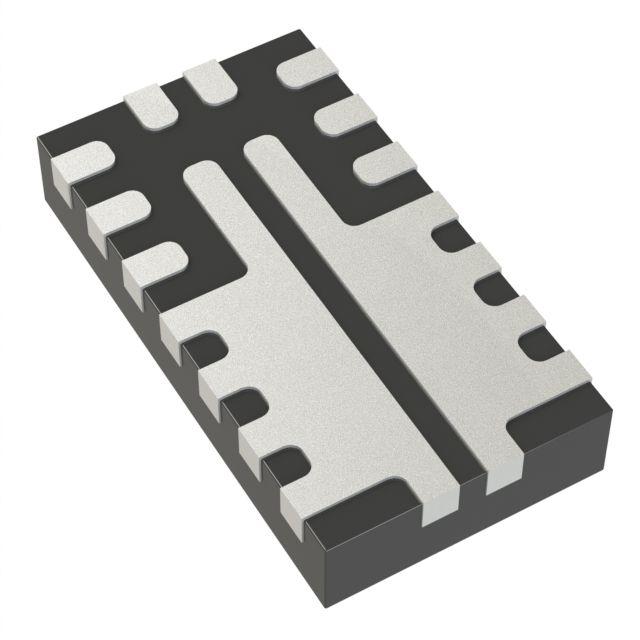

Supplies peak output current defined as 3A. Features fault protection capabilities quantified at Current Limiting (Adjustable), Over Temperature, UVLO. Equipped with features categorized as Slew Rate Controlled. Configured with CMOS input type for diverse applications. Designed for On/Off ease of use and user interaction. Mounting configuration Surface Mount for structural stability. Overall outputs 1 for device connections. Resistance during the on-state 50mOhm for effective conduction. Temperature range -40°C ~ 85°C (TA) for environmental conditions impacting thermal efficiency. Preferences High Side for establishing system output configurations. Type N-Channel for ensuring compatibility with output systems. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 18-PowerUFQFN that offers mechanical and thermal protection. Type of package 18-STQFN (1.6x3) that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Input-output ratio 1:1 for electrical or mechanical conversion. Mean Rds(on) 50mOhm for MOSFET functionality. Supplier package type 18-STQFN (1.6x3) for component selection. Voltage requirement Not Required for electrical specifications. Classification of switch General Purpose for equipment selection. Load voltage 4.5V ~ 20V required for devices. Vcc/Vdd voltage supply Not Required for electronic devices.
