Description

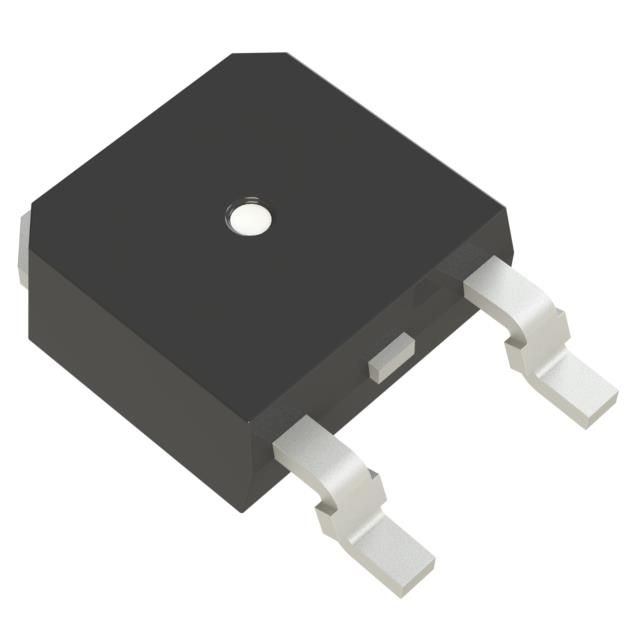

Supplies peak output current defined as 22A. Features fault protection capabilities quantified at Current Limiting (Fixed), Over Temperature, Over Voltage. Evaluated as Automotive grade for quality control. Designed for On/Off ease of use and user interaction. Mounting configuration Surface Mount for structural stability. Overall outputs 1 for device connections. Resistance during the on-state 37mOhm for effective conduction. Temperature range -40°C ~ 150°C (TJ) for environmental conditions impacting thermal efficiency. Preferences Low Side for establishing system output configurations. Type N-Channel for ensuring compatibility with output systems. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case TO-252-3, DPAK (2 Leads + Tab), SC-63 that offers mechanical and thermal protection. Type of package DPAK that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Certification AEC-Q100 for compliance with testing or regulatory standards. Input-output ratio 1:1 for electrical or mechanical conversion. Mean Rds(on) 37mOhm for MOSFET functionality. Supplier package type DPAK for component selection. Voltage requirement Not Required for electrical specifications. Classification of switch General Purpose for equipment selection. Load voltage 42V required for devices. Vcc/Vdd voltage supply Not Required for electronic devices.
