Description

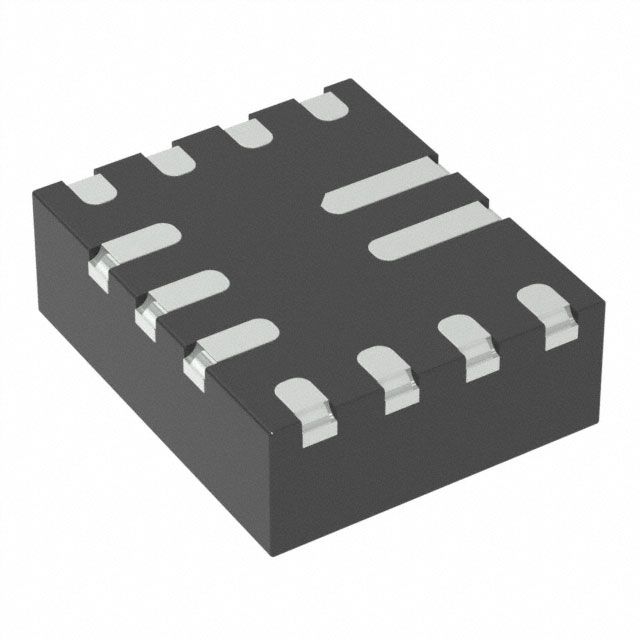

Assesses resistance at forward current Tariff may apply if shipping to the United States for LED or diode testing. Supplies peak output current defined as 5A. Features fault protection capabilities quantified at Current Limiting (Fixed), Over Temperature, Short Circuit. Equipped with features categorized as Shutdown. Evaluated as Automotive grade for quality control. Configured with Non-Inverting input type for diverse applications. Designed for On/Off ease of use and user interaction. Mounting configuration Surface Mount, Wettable Flank for structural stability. Overall outputs 1 for device connections. Resistance during the on-state 6.5mOhm for effective conduction. Temperature range -40°C ~ 125°C (TJ) for environmental conditions impacting thermal efficiency. Preferences High Side for establishing system output configurations. Type N-Channel for ensuring compatibility with output systems. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 13-PowerVQFN that offers mechanical and thermal protection. Type of package 13-QFN (2.5x3) that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Certification AEC-Q100 for compliance with testing or regulatory standards. Input-output ratio 1:1 for electrical or mechanical conversion. Mean Rds(on) 6.5mOhm for MOSFET functionality. Supplier package type 13-QFN (2.5x3) for component selection. Voltage requirement 3V ~ 5.5V for electrical specifications. Classification of switch General Purpose for equipment selection. The classification for import duties Tariff may apply if shipping to the United States related to import and export transactions. Maximum Vce(on) at Vge Tariff may apply if shipping to the United States for transistor specifications. Load voltage 1.2V ~ 5.5V required for devices. Vcc/Vdd voltage supply 3V ~ 5.5V for electronic devices.
