Description

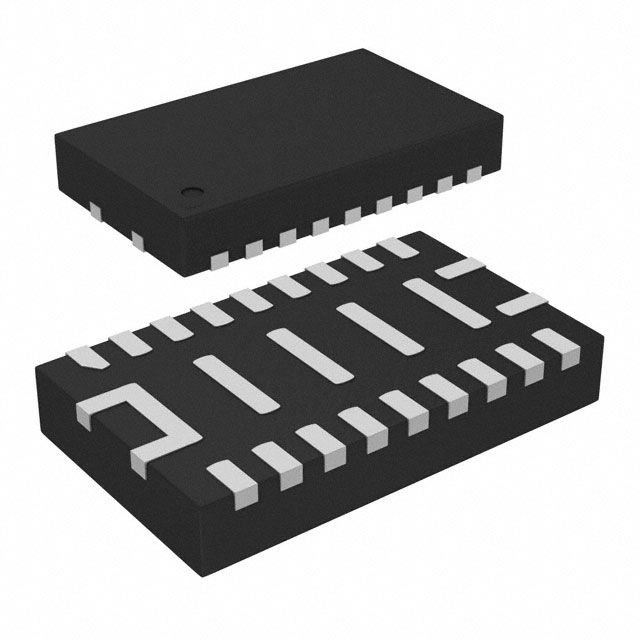

Supplies peak output current defined as 15A. Features fault protection capabilities quantified at Current Limiting (Adjustable), Over Temperature, UVLO. Equipped with features categorized as Load Discharge, Slew Rate Controlled. Evaluated as Automotive grade for quality control. Configured with Non-Inverting input type for diverse applications. Designed for On/Off ease of use and user interaction. Mounting configuration Surface Mount for structural stability. Overall outputs 1 for device connections. Resistance during the on-state 7mOhm for effective conduction. Temperature range -40°C ~ 125°C (TJ) for environmental conditions impacting thermal efficiency. Preferences High Side for establishing system output configurations. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 22-PowerVFQFN that offers mechanical and thermal protection. Type of package 22-QFN (3x5) that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Certification AEC-Q100 for compliance with testing or regulatory standards. Input-output ratio 1:1 for electrical or mechanical conversion. Mean Rds(on) 7mOhm for MOSFET functionality. Supplier package type 22-QFN (3x5) for component selection. Voltage requirement Not Required for electrical specifications. Classification of switch General Purpose for equipment selection. Load voltage 6V ~ 28V required for devices. Vcc/Vdd voltage supply Not Required for electronic devices.
