Description

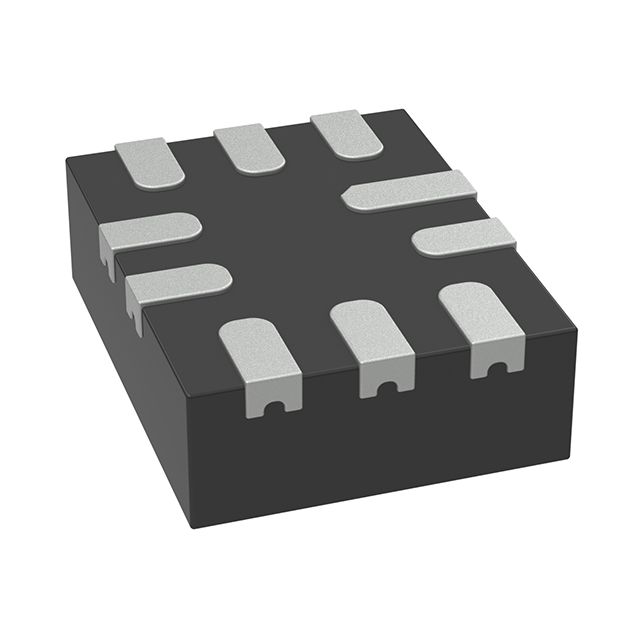

Assesses resistance at forward current Tariff may apply if shipping to the United States for LED or diode testing. Features fault protection capabilities quantified at Over Temperature, UVLO. Configured with Non-Inverting input type for diverse applications. Mounting configuration Surface Mount for structural stability. Overall outputs 1 for device connections. Resistance during the on-state 150mOhm for effective conduction. Temperature range -40°C ~ 125°C (TJ) for environmental conditions impacting thermal efficiency. Type P-Channel for ensuring compatibility with output systems. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case 10-UFQFN that offers mechanical and thermal protection. Type of package 10-UTQFN (1.4x1.8) that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Input-output ratio 1:1 for electrical or mechanical conversion. Mean Rds(on) 150mOhm for MOSFET functionality. Supplier package type 10-UTQFN (1.4x1.8) for component selection. Voltage requirement Not Required for electrical specifications. Classification of switch General Purpose for equipment selection. The classification for import duties Tariff may apply if shipping to the United States related to import and export transactions. Maximum Vce(on) at Vge Tariff may apply if shipping to the United States for transistor specifications. Load voltage 2.2V ~ 12V required for devices. Vcc/Vdd voltage supply Not Required for electronic devices.
