Description

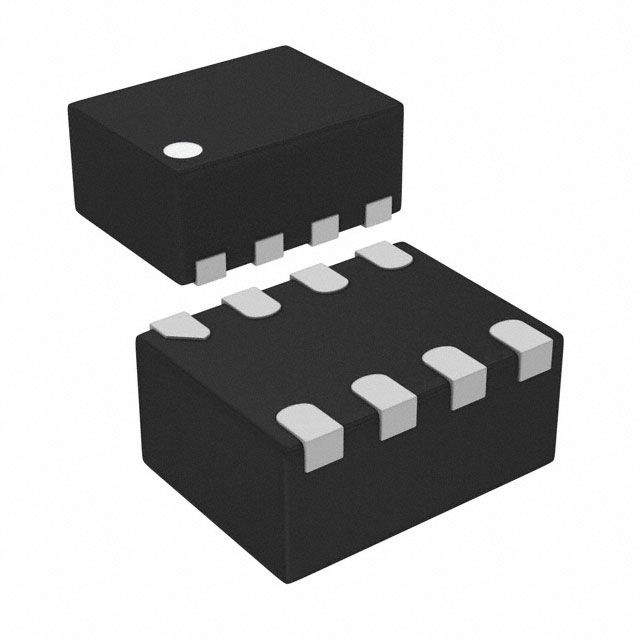

Supplies peak output current defined as 3A. Features fault protection capabilities quantified at Short-Circuit, Thermal Shutdown, UVLO. Equipped with features categorized as Load Discharge, Slew Rate Controlled. Configured with Non-Inverting input type for diverse applications. Designed for On/Off ease of use and user interaction. Mounting configuration Surface Mount for structural stability. Overall outputs 2 for device connections. Resistance during the on-state 20mOhm for effective conduction. Temperature range -40°C ~ 125°C (TJ) for environmental conditions impacting thermal efficiency. Preferences High Side for establishing system output configurations. Type P-Channel for ensuring compatibility with output systems. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 8-WFDFN that offers mechanical and thermal protection. Type of package 8-TQFN (1.5x2) that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Input-output ratio 1:1 for electrical or mechanical conversion. Mean Rds(on) 20mOhm for MOSFET functionality. Supplier package type 8-TQFN (1.5x2) for component selection. Voltage requirement 0.5V ~ 5.5V for electrical specifications. Classification of switch General Purpose for equipment selection. Load voltage 0.5V ~ 5.5V required for devices. Vcc/Vdd voltage supply 0.5V ~ 5.5V for electronic devices.
