Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tube | |
| Availability Status | Obsolete | |
| Electrical Switch Category | General Purpose | |
| Signal Output Quantity | 12 | |
| Input to Output Ratio | 1:12 | |
| Output Setup Options | High Side or Low Side | |
| Exit Signal Category | N/P-Channel | |
| User Interface Type | SPI | |
| Output Load Voltage | 40V (Max) | |
| Core Supply Voltage | 4.5V ~ 5.5V | |
| Peak Output Current | 600mA | |
| Typical On Resistance | 2Ohm (Max), 1.5Ohm (Max) | |
| Entry Signal Category | - | |
| Key Product Highlights | - | |
| Error Safeguard Features | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | |
| Ambient Temp Range | -40°C ~ 150°C (TJ) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |
| Vendor Package Type | 28-SO | |

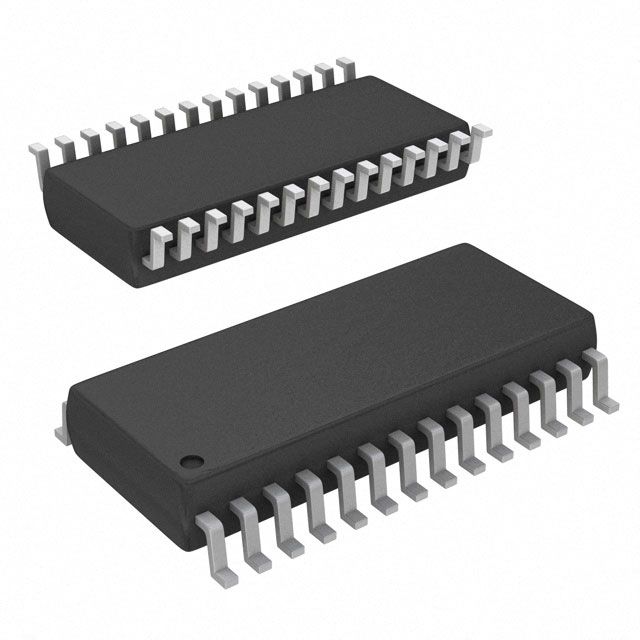

| Component Housing Style | 28-SOIC (0.295", 7.50mm Width) |
Description
Supplies peak output current defined as 600mA. Features fault protection capabilities quantified at Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage. Designed for SPI ease of use and user interaction. Mounting configuration Surface Mount for structural stability. Overall outputs 12 for device connections. Resistance during the on-state 2Ohm (Max), 1.5Ohm (Max) for effective conduction. Temperature range -40°C ~ 150°C (TJ) for environmental conditions impacting thermal efficiency. Preferences High Side or Low Side for establishing system output configurations. Type N/P-Channel for ensuring compatibility with output systems. Type of housing Tube for safeguarding or transporting components. Style of the enclosure/case 28-SOIC (0.295", 7.50mm Width) that offers mechanical and thermal protection. Type of package 28-SO that preserves the integrity of the device. Product status Obsolete concerning availability and lifecycle. Input-output ratio 1:12 for electrical or mechanical conversion. Mean Rds(on) 2Ohm (Max), 1.5Ohm (Max) for MOSFET functionality. Supplier package type 28-SO for component selection. Voltage requirement 4.5V ~ 5.5V for electrical specifications. Classification of switch General Purpose for equipment selection. Load voltage 40V (Max) required for devices. Vcc/Vdd voltage supply 4.5V ~ 5.5V for electronic devices.
