Description

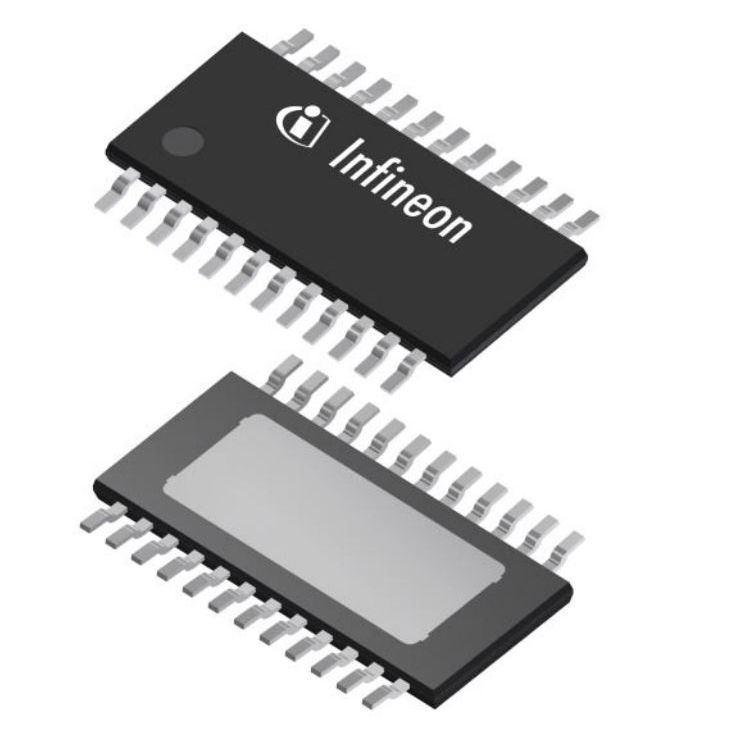

Supplies peak output current defined as 3A. Features fault protection capabilities quantified at Current Limiting (Fixed), Over Load, Over Temperature, Over Voltage, Reverse Battery, Short Circuit, UVLO. Equipped with features categorized as Load Discharge, PWM Input, Slew Rate Controlled, Status Flag. Evaluated as Automotive grade for quality control. Configured with Non-Inverting input type for diverse applications. Designed for PWM, SPI ease of use and user interaction. Mounting configuration Surface Mount for structural stability. Overall outputs 4 for device connections. Resistance during the on-state 22.5mOhm for effective conduction. Temperature range -40°C ~ 150°C (TJ) for environmental conditions impacting thermal efficiency. Preferences High Side for establishing system output configurations. Type N-Channel for ensuring compatibility with output systems. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 24-TSSOP (0.154", 3.90mm Width) Exposed Pad that offers mechanical and thermal protection. Type of package PG-TSDSO-24-42 that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Certification AEC-Q100 for compliance with testing or regulatory standards. Input-output ratio 1:4 for electrical or mechanical conversion. Mean Rds(on) 22.5mOhm for MOSFET functionality. Classification series for the product or component SPOC™. Supplier package type PG-TSDSO-24-42 for component selection. Voltage requirement 3V ~ 5.5V for electrical specifications. Classification of switch Relay, Solenoid Driver for equipment selection. Load voltage 6V ~ 28V required for devices. Vcc/Vdd voltage supply 3V ~ 5.5V for electronic devices.
