Description

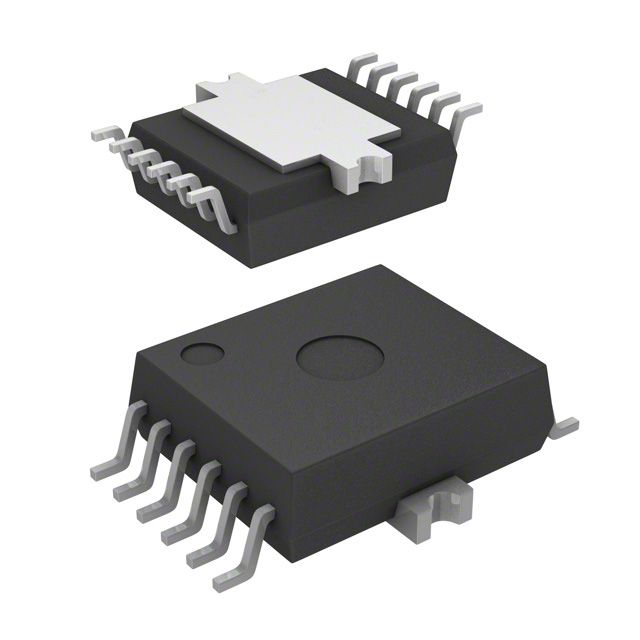

Supplies peak output current defined as 1.8A. Features fault protection capabilities quantified at Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage. Configured with Non-Inverting input type for diverse applications. Designed for On/Off ease of use and user interaction. Mounting configuration Surface Mount for structural stability. Overall outputs 2 for device connections. Resistance during the on-state 110mOhm for effective conduction. Temperature range -40°C ~ 150°C (TJ) for environmental conditions impacting thermal efficiency. Preferences High Side for establishing system output configurations. Type N-Channel for ensuring compatibility with output systems. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 12-BSOP (0.295", 7.50mm Width) Exposed Pad that offers mechanical and thermal protection. Type of package PG-DSO-12-9 that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Input-output ratio 1:1 for electrical or mechanical conversion. Mean Rds(on) 110mOhm for MOSFET functionality. Supplier package type PG-DSO-12-9 for component selection. Voltage requirement Not Required for electrical specifications. Classification of switch General Purpose for equipment selection. Load voltage 5.5V ~ 40V required for devices. Vcc/Vdd voltage supply Not Required for electronic devices.
