Description

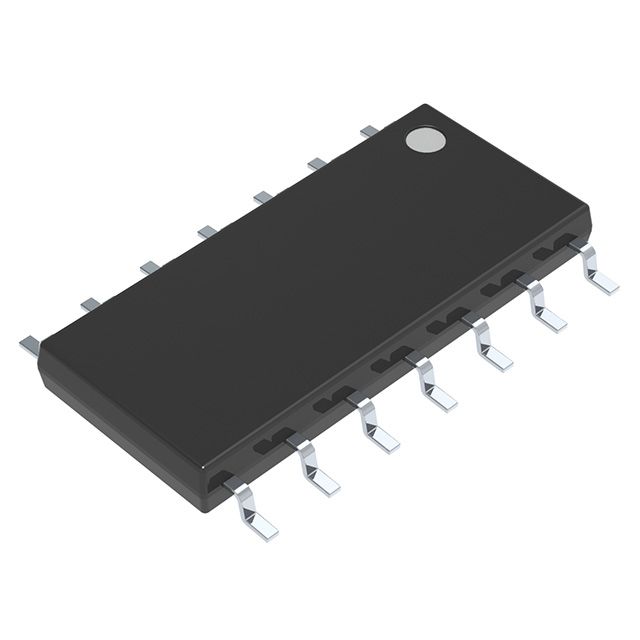

Assesses resistance at forward current Tariff may apply if shipping to the United States for LED or diode testing. Supplies peak output current defined as 3.5A. Features fault protection capabilities quantified at Current Limiting (Adjustable), Open Load Detect, Over Temperature, Over Voltage, Reverse Battery, Short Circuit, UVLO. Configured with Non-Inverting input type for diverse applications. Mounting configuration Surface Mount for structural stability. Overall outputs 2 for device connections. Resistance during the on-state 75mOhm for effective conduction. Temperature range -40°C ~ 150°C (TJ) for environmental conditions impacting thermal efficiency. Preferences High Side for establishing system output configurations. Type N-Channel for ensuring compatibility with output systems. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 14-SOIC (0.154", 3.90mm Width) Exposed Pad that offers mechanical and thermal protection. Type of package 14-SO-EP that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Input-output ratio 1:1 for electrical or mechanical conversion. Mean Rds(on) 75mOhm for MOSFET functionality. Classification series for the product or component INTELLIFET®. Supplier package type 14-SO-EP for component selection. Voltage requirement Not Required for electrical specifications. Classification of switch General Purpose for equipment selection. The classification for import duties Tariff may apply if shipping to the United States related to import and export transactions. Maximum Vce(on) at Vge Tariff may apply if shipping to the United States for transistor specifications. Load voltage 5V ~ 28V required for devices. Vcc/Vdd voltage supply Not Required for electronic devices.
