Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Availability Status | Obsolete | |
| Electrical Switch Category | Relay, Solenoid Driver | |
| Signal Output Quantity | 1 | |
| Input to Output Ratio | 1:1 | |
| Output Setup Options | Low Side | |
| Exit Signal Category | - | |
| User Interface Type | On/Off | |
| Output Load Voltage | 5V ~ 50V | |
| Core Supply Voltage | Not Required | |
| Peak Output Current | 100mA | |
| Typical On Resistance | - | |
| Entry Signal Category | Non-Inverting | |
| Key Product Highlights | Internal PWM | |
| Error Safeguard Features | Current Limiting (Adjustable), Over Temperature | |
| Ambient Temp Range | -40°C ~ 85°C (TA) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |

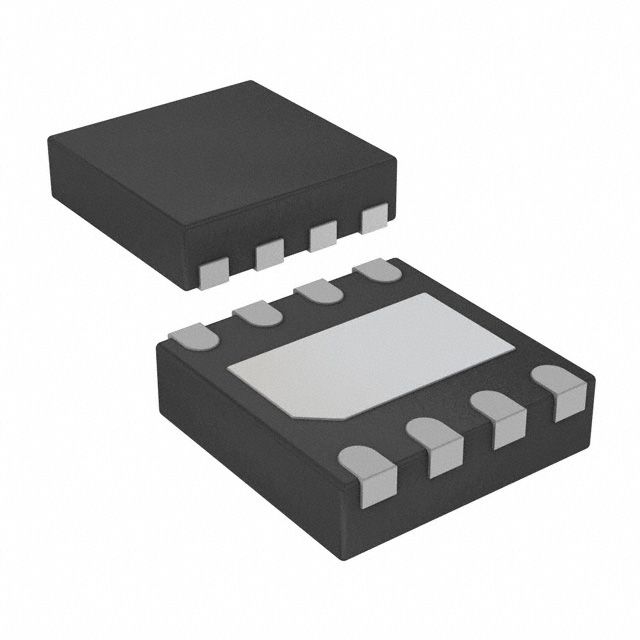

| Vendor Package Type | 8-MLPD (2x2) | |
| Component Housing Style | 8-UFDFN Exposed Pad |
Description
Supplies peak output current defined as 100mA. Features fault protection capabilities quantified at Current Limiting (Adjustable), Over Temperature. Equipped with features categorized as Internal PWM. Configured with Non-Inverting input type for diverse applications. Designed for On/Off ease of use and user interaction. Mounting configuration Surface Mount for structural stability. Overall outputs 1 for device connections. Temperature range -40°C ~ 85°C (TA) for environmental conditions impacting thermal efficiency. Preferences Low Side for establishing system output configurations. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case 8-UFDFN Exposed Pad that offers mechanical and thermal protection. Type of package 8-MLPD (2x2) that preserves the integrity of the device. Product status Obsolete concerning availability and lifecycle. Input-output ratio 1:1 for electrical or mechanical conversion. Supplier package type 8-MLPD (2x2) for component selection. Voltage requirement Not Required for electrical specifications. Classification of switch Relay, Solenoid Driver for equipment selection. Load voltage 5V ~ 50V required for devices. Vcc/Vdd voltage supply Not Required for electronic devices.
