Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 3000 | ₹ 79.08000 | ₹ 2,37,240.00 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Availability Status | Active | |
| Electrical Switch Category | General Purpose | |
| Signal Output Quantity | 1 | |
| Input to Output Ratio | 1:1 | |
| Output Setup Options | High/Low Side | |
| Exit Signal Category | N-Channel | |
| User Interface Type | PWM | |
| Output Load Voltage | 4.5V ~ 20V | |
| Core Supply Voltage | 4.5V ~ 5.5V | |
| Peak Output Current | 55A | |
| Typical On Resistance | - | |
| Entry Signal Category | Non-Inverting | |
| Key Product Highlights | - | |
| Error Safeguard Features | Over Temperature, UVLO | |
| Ambient Temp Range | -40°C ~ 125°C (TJ) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |

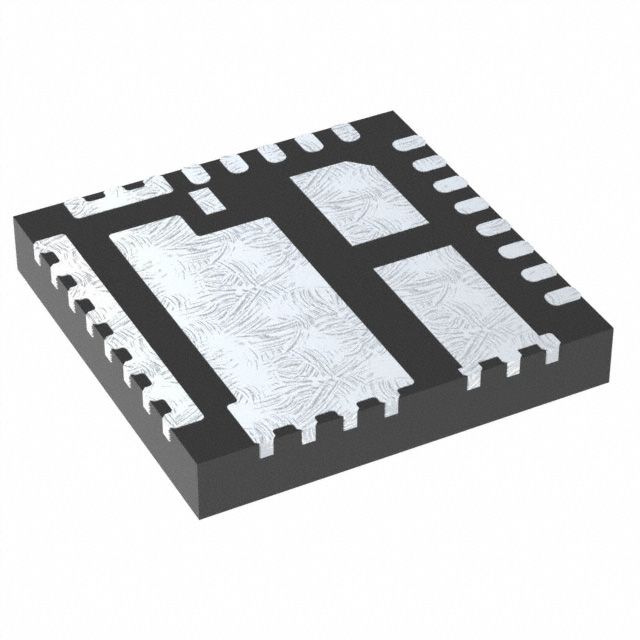

| Vendor Package Type | 31-QFN (5x5) | |
| Component Housing Style | 31-PowerVFQFN Module |
Description
Supplies peak output current defined as 55A. Features fault protection capabilities quantified at Over Temperature, UVLO. Configured with Non-Inverting input type for diverse applications. Designed for PWM ease of use and user interaction. Mounting configuration Surface Mount for structural stability. Overall outputs 1 for device connections. Temperature range -40°C ~ 125°C (TJ) for environmental conditions impacting thermal efficiency. Preferences High/Low Side for establishing system output configurations. Type N-Channel for ensuring compatibility with output systems. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case 31-PowerVFQFN Module that offers mechanical and thermal protection. Type of package 31-QFN (5x5) that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Input-output ratio 1:1 for electrical or mechanical conversion. Supplier package type 31-QFN (5x5) for component selection. Voltage requirement 4.5V ~ 5.5V for electrical specifications. Classification of switch General Purpose for equipment selection. Load voltage 4.5V ~ 20V required for devices. Vcc/Vdd voltage supply 4.5V ~ 5.5V for electronic devices.
