Description

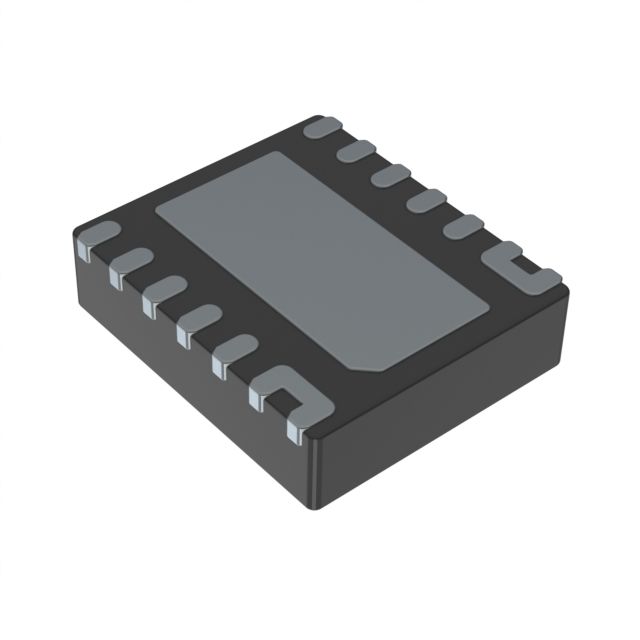

Supplies peak output current defined as 8A. Features fault protection capabilities quantified at Current Limiting (Adjustable), Over Temperature, Over Voltage, Reverse Current, UVLO. Equipped with features categorized as Slew Rate Controlled, Status Flag. Configured with Non-Inverting input type for diverse applications. Designed for On/Off ease of use and user interaction. Mounting configuration Surface Mount for structural stability. Overall outputs 1 for device connections. Resistance during the on-state 19mOhm for effective conduction. Temperature range -40°C ~ 125°C (TJ) for environmental conditions impacting thermal efficiency. Preferences High Side for establishing system output configurations. Type N-Channel for ensuring compatibility with output systems. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 14-VFDFN Exposed Pad that offers mechanical and thermal protection. Type of package 14-DFN (3.5x3) that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Input-output ratio 1:1 for electrical or mechanical conversion. Mean Rds(on) 19mOhm for MOSFET functionality. Supplier package type 14-DFN (3.5x3) for component selection. Voltage requirement 3.3V ~ 23V for electrical specifications. Classification of switch General Purpose for equipment selection. Load voltage 3.3V ~ 23V required for devices. Vcc/Vdd voltage supply 3.3V ~ 23V for electronic devices.
