Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | VIPER™ | |
| IC Encapsulation Type | Tube | |
| Availability Status | Obsolete | |
| Output Electrical Isolation | Isolated | |
| Embedded Toggle Switches | Yes | |
| Breakdown Voltage Point | 620V | |
| Circuit Topology Design | Flyback | |
| Startup Voltage Threshold | 11 V | |
| Core Supply Voltage | 8V ~ 15V | |
| On-Off Ratio | - | |
| Switching Cycle Rate | Up to 200kHz | |
| Wattage Power Level | 20 W | |
| Error Safeguard Features | Current Limiting, Over Temperature | |
| Adjustment Capabilities | - | |
| Ambient Temp Range | - | |
| Quality Grade Level | - | |
| Certification Qualification | - | |

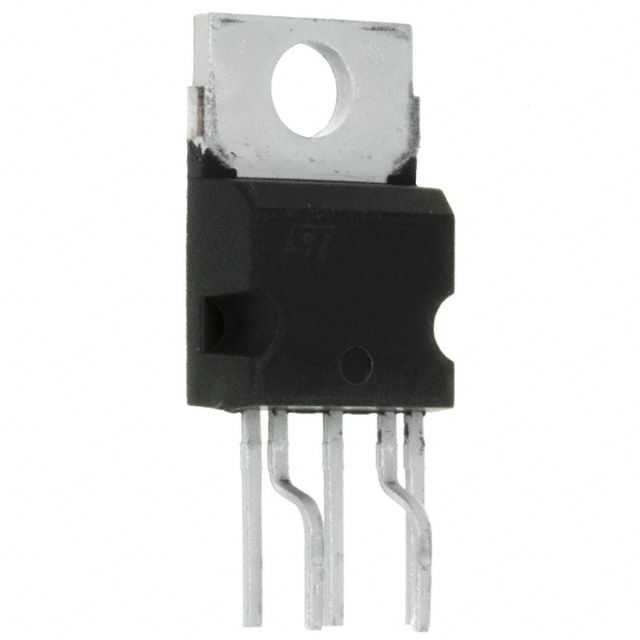

| Component Housing Style | Pentawatt-5 HV (Bent and Staggered Leads) | |
| Vendor Package Type | 5-PENTAWATT | |
| Attachment Mounting Style | Surface Mount |
Description
Features fault protection capabilities quantified at Current Limiting, Over Temperature. Engineered for a Up to 200kHz switching frequency ideal for high-speed electronic uses. Fitted with Yes internal switch(es) for reliable control. Mounting configuration Surface Mount for structural stability. Safeguard Isolated for maintaining output integrity and signal fidelity. Type of housing Tube for safeguarding or transporting components. Style of the enclosure/case Pentawatt-5 HV (Bent and Staggered Leads) that offers mechanical and thermal protection. Type of package 5-PENTAWATT that preserves the integrity of the device. Power measured in watts 20 W for optimal operation. Product status Obsolete concerning availability and lifecycle. Classification series for the product or component VIPER™. Supplier package type 5-PENTAWATT for component selection. Voltage requirement 8V ~ 15V for electrical specifications. Layout design Flyback for electrical systems or configurations. The breakdown voltage threshold 620V for component criteria. Starting voltage 11 V required for device activation. Vcc/Vdd voltage supply 8V ~ 15V for electronic devices.
